HANPOSE 17HS3401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planeta... (SIZE: RATIO19-1)

SELECTED OPTION:
SIZE: RATIO19-1

Description:

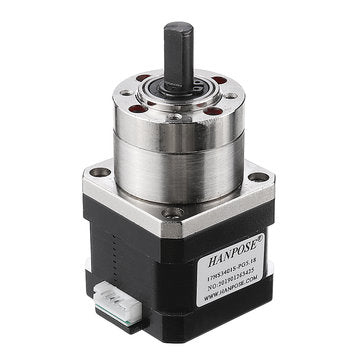

HANPOSE 17HS3401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor
Certification:?CE,?ROSH,?ISO,?FCC

Specification:

Product Model	17HS3401S-PGXXX
Stepper Motor Length	34mm
Shaft Size	D Shaft 16x8mm
Motor Lead	Plug
Including Wire	1M Dupoint Wire

Gear Reducer Ratio

Gearbox Model	3.71-1	5.18-1	14-1	19-1	27-1	51-1
Reduction	3.71	5.18	14	19	27	51
Gearbox Length	29	29	37	37	37	45

Planetary Gear Reducer Technical Parameters

Internal Gear Material	45# Steel
Output Bearing Form	Ball Bearings
Radial Load	a???35N
Axial Load	a???25N
Radial Clearance	a???0.04mm
Axial?Clearance	a???0.03mm
Backlash(No Load)	a???2?￣

Note: The?Planetary Gearbox Stepper Motor?Holding?Torque=?17HS3401-S Stepper Motor?Holding?Torque *?Reduction * 0.8
Warning: The Gear Box Can Bear Less Than 16 N.M?Torque

17HS3401-S Stepper Motor Electrical Specifications:

Model No.	Step Angle	Motor? Length	Rated? Current	Resistance /Phase	Inductance /Phase	Holding? Torque	Detent Torque	Inertia Of Rotor	? Lead?
	( ?￣)	(L)mm	(A)	(??)	(mH)	(N.cm)?	(N.cm)?	(G.?cm2)	(No.)
17HS3401-S	1.8	34	1.3	2.4	2.8	28	1.6	34	4

Applications:
Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor,
Cnc router stepper motor.
3D printer

Package Included:
1 x HANPOSE 17HS3401S-PGXXX?Extruder Gear Stepper Motor?

More Details:
