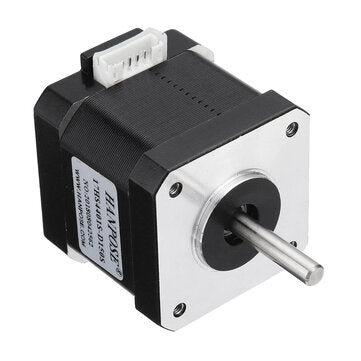

HANPOSE 17HS4401S-D150S Double Shaft 48mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.6A 45N.cm 4-lead f

Description:
HANPOSE?17HS4401S-D150S?Double Shaft 48mm Nema 17 Stepper Motor 42 Motor 42BYGH?1.6A 45N.cm?4-lead for CNC Laser 3D Printer
Certification:?CE,?ROSH,?ISO,?FCC
Color:?Black(Surface?Treatment)

Specification:

Model	17HS4401S-D150S??
Type	Hybrid
Shaft	Double shaft(1. D Shaft:?23?x?D??5mm? 2. DShaft: 10?x?D??5mm?)
Phase	2
Step Angle	1.8?￣
Motor Frame Size	42 x 40mm
Outlet way	4 plug line
Motor leads	30cm Wire
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,?Laser engraving, Automation Equipment, ?Non-standard?Equipment,?Placement machine?ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated? Voltage	Rated? Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	? Lead?
	( ?￣)	(L)mm	(V)	(A)	(??)	(mH)	(N.cm)?	(G.?cm2)	(No.)
17HS4401S-D150S	1.8	40	2.5-3.0	1.6	1.6	3	45	57	4

General Specification:

Precision angle step	±5% (full step, no charge)
Resistance accuracy	±10%
Precision inductance	±20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20?￣)-(+ 50?￣)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance.
5. Black surface treatment, double shaft. ? Package Included:
1 X?17HS4401S-D150S?Stepper Motor?
