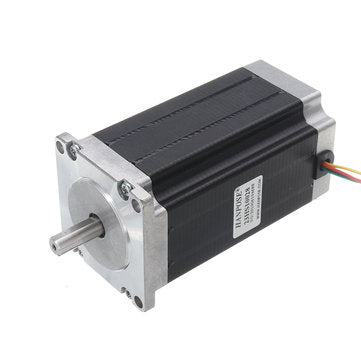

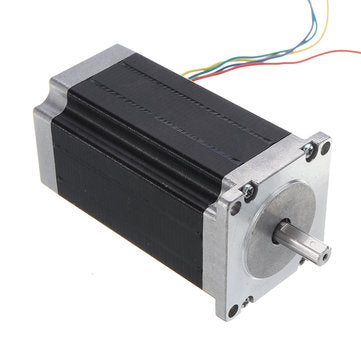

HANPOSE 23HS10028 100mm Nema 23 Stepper Motor 57 Motor 2.8A 260N.cm 4-lead CNC Laser Grind Foam Plas

Description:
HANPOSE 23HS10028 100mm Nema 23 Stepper Motor 57 Motor 2.8A 260N.cm 4-lead CNC Laser Grind Foam Plasma Cut Engraving Machine
Certification:?CE,?ROSH,?ISO,?FCC

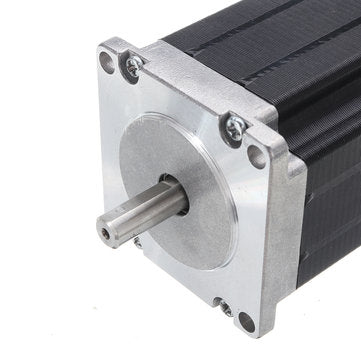

Shaft Diamter: 8mm D Shaft

Specification:

Model	23HS10028?
Phase	2
Step Angle	1.8?￣
Motor Size	57 x 100mm
Shaft	D shaft? 22xD??8mm?
Outlet way	4 line

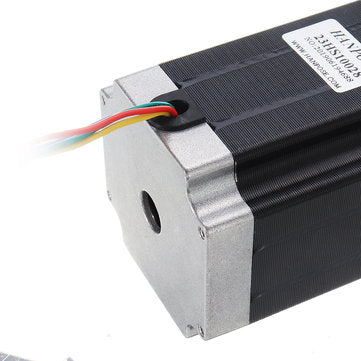

Motor leads	30cm Wire
Adapter drive	Two-phase step drive
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,?Laser engraving, Automation Equipment, ?Non-standard?Equipment,?Placement machine?ect.

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rated? Current	Resistance /Phase	Inductance /Phase	Holding Torque	Inertia Of Rotor	? Lead?
	( ?￣)	(L)mm	(A)	(Ohm)	(mH)	(N.cm)?	(G.?cm2)	(No.)
23HS7628?	1.8	100	2.8	2.1	10	260	650	4

General Specification:

Precision angle step	±5% (full step, no charge)
Resistance accuracy	±10%
Precision inductance	±20%
Temperature rise	80deg Max (rated current, 2 phase on)
Ambient temperature	( - 20?￣)-(+ 50?￣)
Insulation resistance	100M?? Min, 500VDC
Insultion Force	500VAC for a minute

Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. ? Package Included:
1 X?23HS10028?Stepper Motor?
