HDMI Audio Splitter HDMI To HDMI AUDIO SPDIF Converter 4K 3.5mm Analog Audio Output Switcher

???Specifications:

HDCP Version: HDCP1.4

HDMI version: HDMI1.4b

HDMI resolution: 2160p@30Hz/1080 p@50/60 Hz/1080 i/720 p/1576 i/480 p/480 i

Support video color format: 24-bit/dark color 30-bit, 36-bit

Audio output: SPDIF 3.5mm audio

MAX Bandwidth: 340MHz

Export Rate: 10.2Gbps

Input and output TMDS signal: 0.5-1.5 volt p-p (TTL)

Input and output DDC signal: 5-volt p-p (TTL)

Input cable distance: <=7m AWG26 standard cable HDMI

Output cable distance: <=8m AWG26 standard cable HDMI

Maximum work Current: 500mA

Working voltage: dc 5V

Operating temperature range: (-15 to 55?￣C)

Operating humidity range: 5% to 90%RH (no condensation)

???Features:

Convert 1 HDMI input to 1 HDMI 1 audio (SPDIF) output 3.5mm analog audio output

Input resolution: up to 3840x2160@30 Hz; 4096x2160@30 Hz

HDMI realizes the synchronous separation of audio signals. There are three audio mode options: PASS/2.0CH/5.1CH

The LED indicator clearly indicates the working status of the extractor

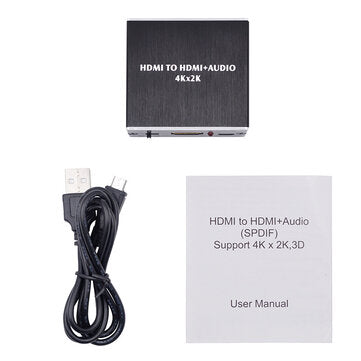

Package Included:

1 x?HDMI Audio Splitter

1 x USB Power Supply Line

1 x User`s Manual
