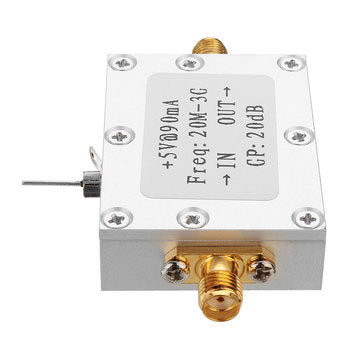

High Linearity Wideband RF Amplification 20dB 0.02-3G High Performance Medium Power Amplifier Module

Feature: ? The high-performance InGaP HBT MMIC amplifier uses a Darlington configuration and an active bias network. The active bias network provides stable current variation with temperature and test process. Designed to run directly from a 5V supply, there is no need for a buck resistor compared to a typical Darlington amplifier. The product is designed for high linearity requiring small size and minimal external 5V gain. ? Description: ? 1. Supply voltage: typical +5V (typical current value 90mA) 2. Gain: Typical value 20dB@2G Input and output impedance: 50 ohms 3. Maximum output power: P1db +20dBm (@2GHz 4. Input signal: <+10dBm (output signal is distorted when input is greater than +10dBm) 5. Bandwidth: 0.02-3GHZ (the gain is slightly different at different frequencies,) 6. Noise figure: 4.1dB@1GHz ? Package includes: ? 1 x RF Amplifier
