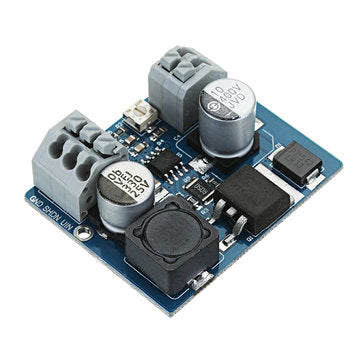

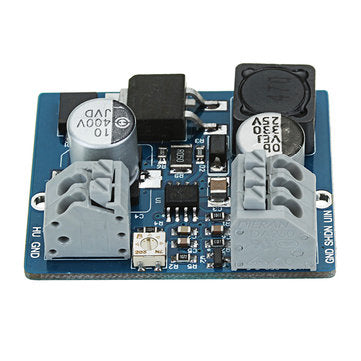

High Voltage DC 12V 24V to 85-235V Power Supply Boost Module For Nixie Tube Glow Tube Magic Eye

Feature:? ? NCH6100HV high voltage power supply module is miniature step-up DC-DC converter with high efficiency and low heat operating from 12v to 24v DC input, with an output of 85~235V DC set by a precise potentiometer. Designed for Nixie tube, VFD tube, Magic eye etc. shutdown mode are controlled via SHDN ? Parameters: ? Input voltage: DC 12-24V Output voltage: DC 85-235V Dimensions: 45mm x 37mm x 15mm

Feature	Symbol	Minimum	Typical	Maximum	Unit
Input voltage	Vin	10	12	24	Volts
Output voltage (Io=10mA)	Vout	85	---	235	Volts
Output current (Vin=12V Vout=90V)	Iout	0	45	95	mAmps
Output current (Vin=12V Vout=170V)		0	35	55	mAmps
Output current (Vin=12V Vout=220V)		0	24	35	mAmps
Output control terminal voltage (SHDN)	Vshdn	1.2	---	Vin	Volts
Output control terminal current ?(SHDN)	Ishdn	---	---	2	mAmps
No-load quiescent current?(Vin=12V Vout=170V)	Ioff	---	15	---	mAmps
Conversion efficiency?(Vin=12-18V, 50%-80% rated load)	Efficiency?	---	80	---	%

Note: ? 1. The SHDN pin can be left floating and the floating status output will be enabled. 2. This module does not have anti-reverse function. Please ensure that the input voltage polarity is correct. ? Package includes: ? 1 x DC Power Supply Module

, , , , , ,
