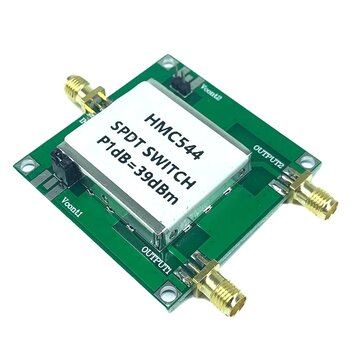

HMC544A RF Switch Module 35V Industrial Electronic SPDT Module Replacement for Microwave and Fixe
HMC544A RF Switch Module 35V Industrial Electronic SPDT Module Replacement for Microwave and Fixe
Regular price
$654.00 USD
Regular price
$1,090.00 USD
Sale price
$654.00 USD
Unit price
per
Couldn't load pickup availability
Features:
WIDE APPLICATION-- RF switch module can be used for cellular/PCS/3G infrastructure; base stations and repeaters; WLAN, WiMAX and WiBro; microwave and fixed radio. FAST HEAT DISSIPATION-- The large heat dissipation area can increase the continuous working time, easy to install and use. USED FOR-- SPDT module can control signals from DC to 4.0GHz, especially suitable for insertion of 450, 900, 1900, 2300 and 2700 MHz applications with loss below 0.5 dB. WIDE FREQUENCY RANGE-- RF switch module possess high operating frequency range, increase the scope of application. HIGH QUALITY-- RF switch module adopts high quality printed circuit board material for long service life, corrosion-resistant and anti-oxidation.
Specification:
Material:ABS Color: green Size: 50 x 50MM Weight: 22g
Switch description:
4.1 When control port 2 is at high level and control port 1 is at low level, the RF input and RF output 2 are connected, and the RF output 1 is disconnected.
4.2 When control port 2 is at low level and control port 1 is at high level, the RF input and RF output 1 are connected, and the RF output 2 is disconnected.
Package included:
1 x RF Switch Module
