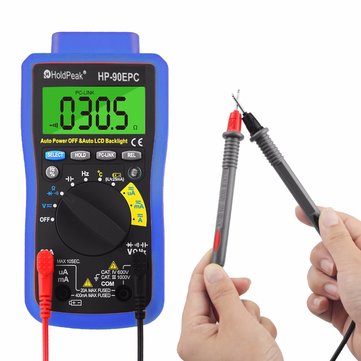

HoldPeak HP-90EPC 4000 Counts True RMS Digital Multimeter Battery Diode/ hFE Tester With USB/ Softwa
HoldPeak HP-90EPC 4000 Counts True RMS Digital Multimeter Battery Diode/ hFE Tester With USB/ Softwa
Regular price
$1,315.00 USD
Regular price
$2,191.67 USD
Sale price
$1,315.00 USD
Unit price
/
per
Couldn't load pickup availability
Features:
?
Auto Range
4000 Counts Display
DC/AC Voltage Test
DC/AC Current Test
Resistance/ Capacitance/Temperature/Frequency/Duty Cycle Test
Diode/ hFE Test
Continuity Buzzer
Battery Test
Relative Value
True RMS

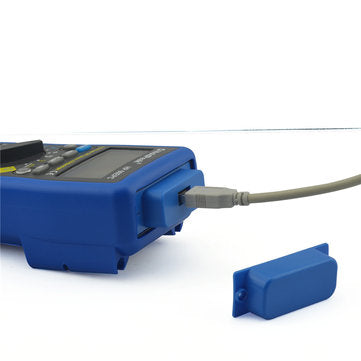

PC Link USB(Can connect the Multimeter to PC and use the software of this meter to upload and analyze the real-time data.)
Auto Back Light
Auto Shut Down
Data Hold
Specification:
Model:HP-90EPC
Measuring Resistance Range:400??-40M??
Measuring Capacitance Range:51.2nF ~ 100UF
Measuring Voltage Range:?
AC: 400mV -?750V
DC: 400?mV - 1000 V
Measuring Current Range:
AC: 400UA?-?20A
DC: 400UA?-?20A
Display Type:Digital Display

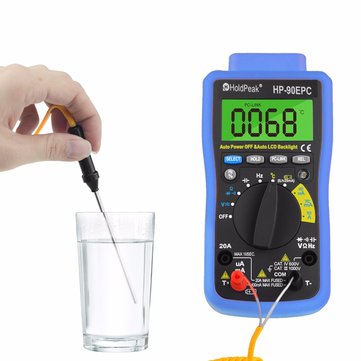

Measuring Temperature?Range:?-20 - 10000 a??
Measuring Frequency Range: 5.12Hz - 5.12MHz
Operating Temperature:0 - 40 a??
Duty Cycle:0.1%~99.9%
Power: 1 x 9V(6F22) (not included)
Dimensions:167*90*50
Software operating system: xp/win7/win8/win10

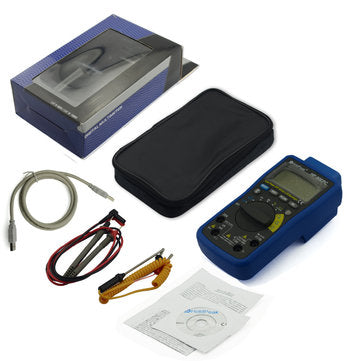

Package includes:
1 x HP-90EPC Multimeter
1 x English Manual
1 x Test Leads
1 x Temperature Test Probe
1 x PC Link Software CD
1 x USB
1 x Carry Bag
?
Details pictures:
?
Auto Range
4000 Counts Display
DC/AC Voltage Test
DC/AC Current Test
Resistance/ Capacitance/Temperature/Frequency/Duty Cycle Test
Diode/ hFE Test
Continuity Buzzer
Battery Test
Relative Value
True RMS
PC Link USB(Can connect the Multimeter to PC and use the software of this meter to upload and analyze the real-time data.)
Auto Back Light
Auto Shut Down
Data Hold
Specification:
Model:HP-90EPC
Measuring Resistance Range:400??-40M??
Measuring Capacitance Range:51.2nF ~ 100UF
Measuring Voltage Range:?
AC: 400mV -?750V
DC: 400?mV - 1000 V
Measuring Current Range:
AC: 400UA?-?20A
DC: 400UA?-?20A
Display Type:Digital Display
Measuring Temperature?Range:?-20 - 10000 a??
Measuring Frequency Range: 5.12Hz - 5.12MHz
Operating Temperature:0 - 40 a??
Duty Cycle:0.1%~99.9%
Power: 1 x 9V(6F22) (not included)
Dimensions:167*90*50
Software operating system: xp/win7/win8/win10
Package includes:
1 x HP-90EPC Multimeter
1 x English Manual
1 x Test Leads
1 x Temperature Test Probe
1 x PC Link Software CD
1 x USB
1 x Carry Bag
?
Details pictures:
