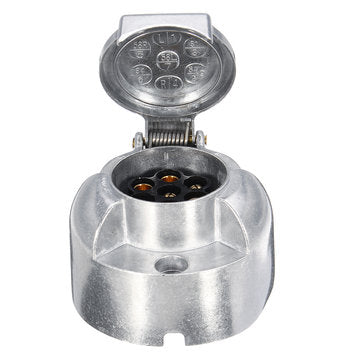

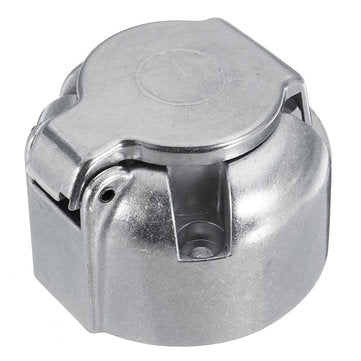

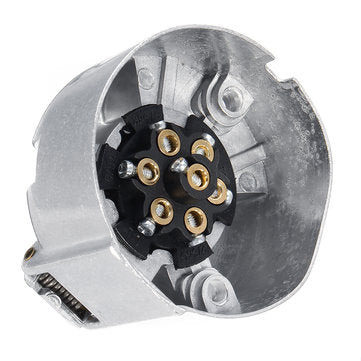

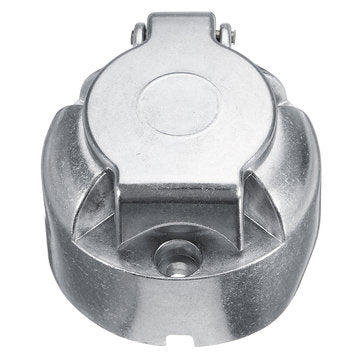

HT3004 7Pin 12V Plug Socket Adapter Converter Trailer Towbar Socket

Package Included:
-1 x 7-Pin Trailer Socket

Features:
-Suitable for 7-pin heavy European standard trailer.
-Establishes a secure connection between your major vehicle and the additional trailer. Transfers the electronic signal lights from the vehicle to trailer.
-Supplies power to your caravan, towing and truck.
-Brass pins in a durable metal housing.
-Waterproof for all road and weather conditions.

Specifications:
-Model: HT3004
-Color: Silver
-Shape: Circular
-Material: Aluminum
-Contact Material: Copper
-Size: Approx. 7x5cm/2.76x1.97
-Number of Stitches: 7
-Voltage Output: 12V

Wiring Configuration:
(Pin - Wire Color - Function)
-Pin1: Yellow - L / H Direction Indicator
-Pin2: Blue - Rear Fog Lamps
-Pin3: White - Earth Return
-Pin4: Green - R / H Direction Indicator
-Pin5: Brown - R / H Tail & No. Plate Lamp
-Pin6: Red - Stop Lamps
-Pin7: Black - L / H Tail & No. Plate Lamp

More details:
