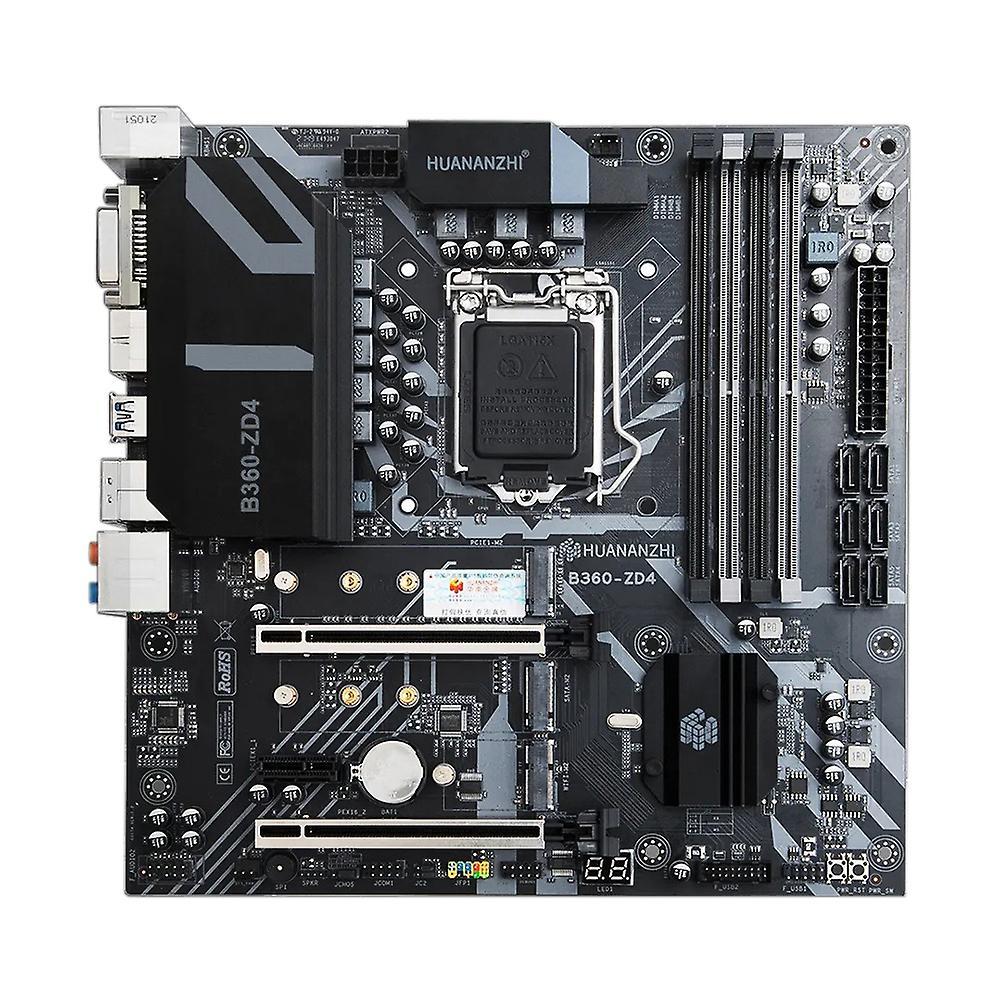

Huananzhi B360-zd4 Motherboard Pcie 3.0 Interface for Btc Miner

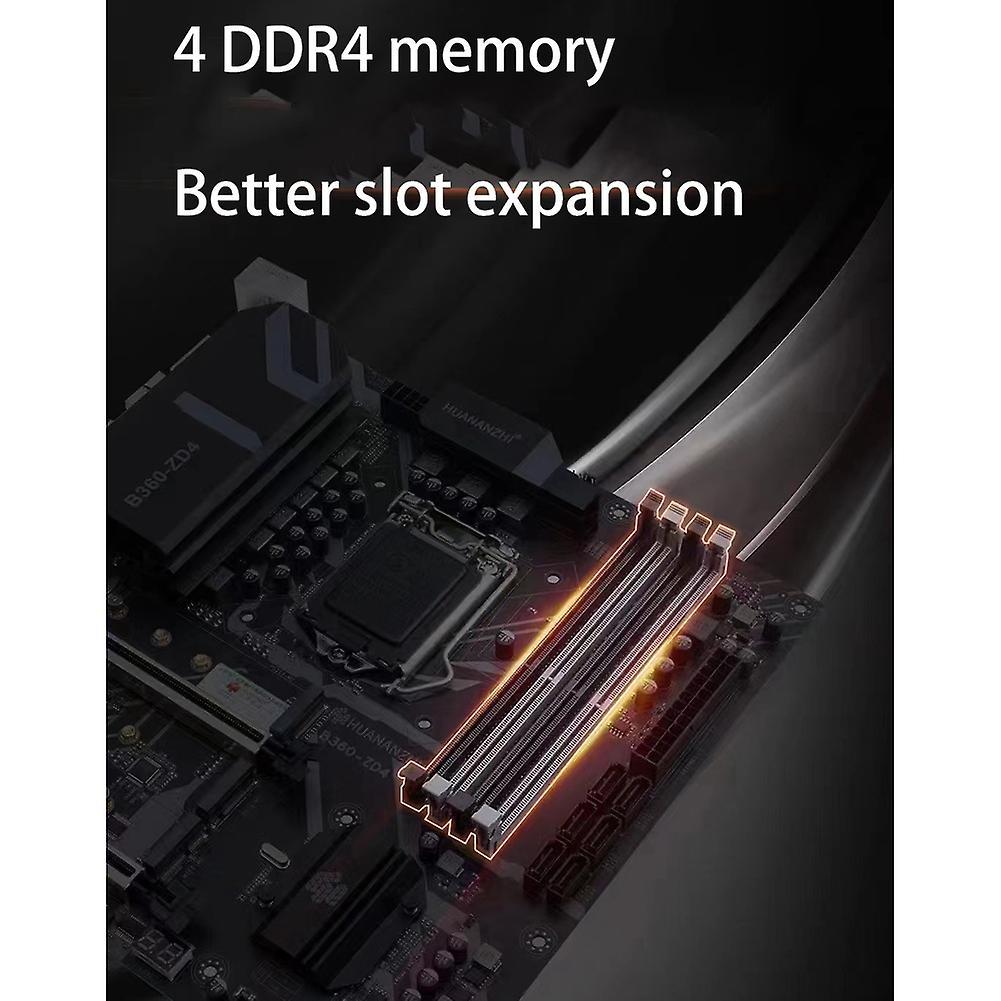

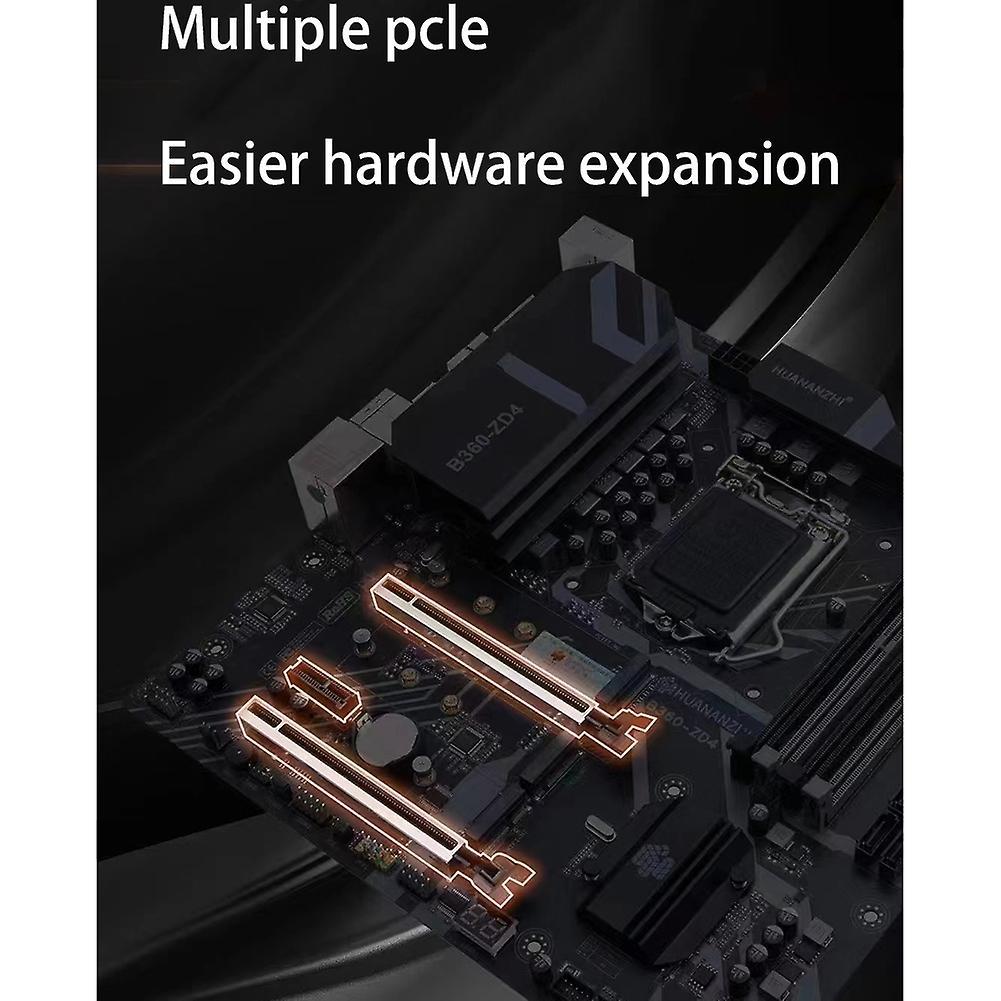

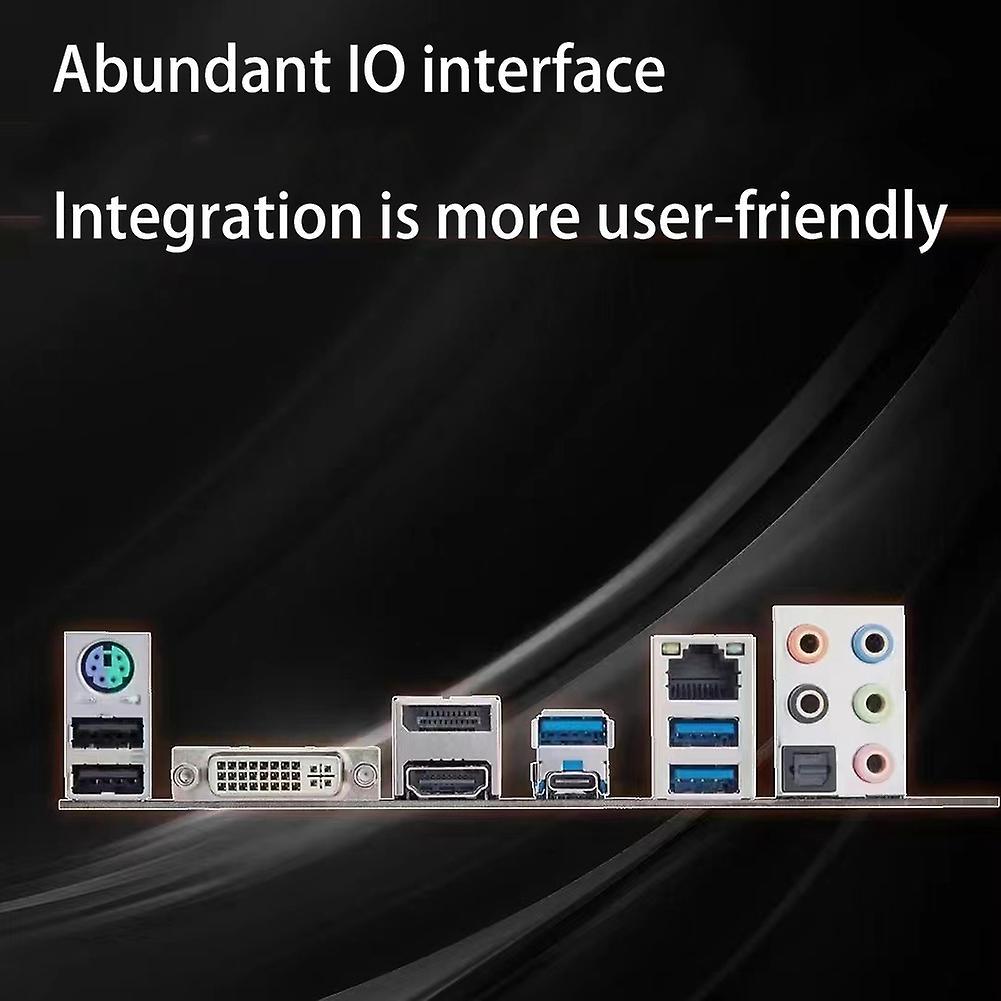

Brand: HUANANZHIProduct Model: B360-ZD4CPU pins: Support for Intel LGA1151 8th and 9th generation processorsMemory slots: 4 DDR4 memory slotsMemory standard: support dual-channel DDR4 2666/2400/2133MHz specification memory, maximum support 64GBStorage interface: 6 SATA3.0 6Gb/s hard disk interfacesExpansion Slots: 1 PCI Express 3.0 x16 slot 1 PCI Express 3.0 x1 slot 1 PCI Express 3.0 x4 slotExpansion interface: 1 M.2 2280 supports PCIE X4 3.0 32Gb/s 1 M.2 2280 supports NGFF SATA3.0 6Gb/s (M.2 NGFF will occupy a SATA interface signal when connected to a hard disk) 1 M. 2WIFI NGFF type interfaceOnboard sound card: 7.1 channel sound cardOnboard network card: Gigabit network cardPower interface: 24PIN+8PINFan pins: 1 CPU_FAN pin 1 SYS_FAN pinNumber of power supply phases: eight-phase power supplyNumber of PCB layers: 6 layersRear panel interface: 1 PS/2 keyboard and mouse universal interface, 1 DVI interface, 1 HDMI interface, 1 DP interface, 3 USB2.0 interfaces, 2 USB3.0 interfaces, 1 Type-C interface (USB3.0 speed Type -C The upper blue USB interface is USB2.0) 1 network interface 1 5-hole audio interface 1 optical audio interface (integrated on the 5-hole audio interface)Front panel interface: 1 set of USB2.0 pins, 1 set of USB3.0 pins, 1 motherboard detection card, 1 onboard power-on/restart button, 1 set of front audio pins, 1 set of COM pins, 1 onboard buzzerColour: blackMaterial: plasticSize: 244 x 244MMPackage Contents:1 x B360-ZD4 motherboardOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
