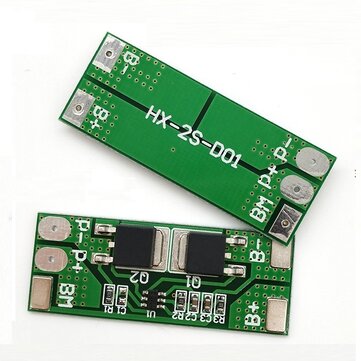

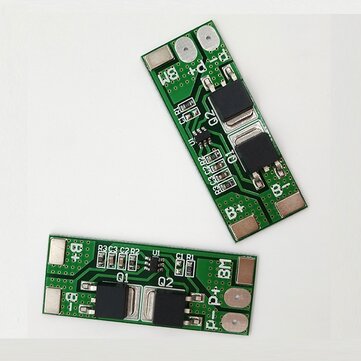

HX-2S-D01 2S 6.4V 7.2V 8A 10A Lithium Iron Phosphate Protection Board Overcharge and Over-discharge
HX-2S-D01 2S 6.4V 7.2V 8A 10A Lithium Iron Phosphate Protection Board Overcharge and Over-discharge
Regular price
$336.00 USD
Regular price
$560.00 USD
Sale price
$336.00 USD
Unit price
per
Couldn't load pickup availability
Specification:
Model: HX-2S-D01 Size: 41*16*3.5mm Overcharge voltage range: 3.65v±0.05v Over-discharge voltage range: 2.0-2.5v±0.05v Maximum operating current: 8A Upper limit instantaneous current: 10A Working temperature: -40~+50a?? Storage conditions: -40~+80a?? Quiescent current: < 10uA Effective life:>50000 hours Internal resistance: < 300m?? Charging voltage: 7.2V-8.4V Short-circuit protection: can be protected, delayed self-recovery.
Package included:
1 x? Lithium Iron Protection Board
Note: This protection board cannot be used for Xenon lights, electric drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children`s car batteries,? 775 (4A)motors, and 1W fisheye LED lights.
Model: HX-2S-D01 Size: 41*16*3.5mm Overcharge voltage range: 3.65v±0.05v Over-discharge voltage range: 2.0-2.5v±0.05v Maximum operating current: 8A Upper limit instantaneous current: 10A Working temperature: -40~+50a?? Storage conditions: -40~+80a?? Quiescent current: < 10uA Effective life:>50000 hours Internal resistance: < 300m?? Charging voltage: 7.2V-8.4V Short-circuit protection: can be protected, delayed self-recovery.
Package included:
1 x? Lithium Iron Protection Board
Note: This protection board cannot be used for Xenon lights, electric drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children`s car batteries,? 775 (4A)motors, and 1W fisheye LED lights.
