HX-2S-JH10 2S 8A 8.4V 7.4V 18650 Lithium Battery Protection Board Overcharge and Overdischarge Prote

Specification:
Model:?HX-2S-JH10 Size:?40*17*3.5mm? Maximum operating current: 8A Upper limit instantaneous current: 10A Overcharge voltage range:4.25-4.35v&pm;0.05v?? Over-discharge voltage range:?2.5-3.0v&pm;0.05v Working temperature: -40~+50a?? Storage conditions: -40~+80a?? Effective life: >50000 hours Internal resistance:<300m?? Quiescent current:< 10??A Charging voltage: 8.4V-9V?? Balance current : 56mA
Short circuit protection: can protect, delay automatic recovery

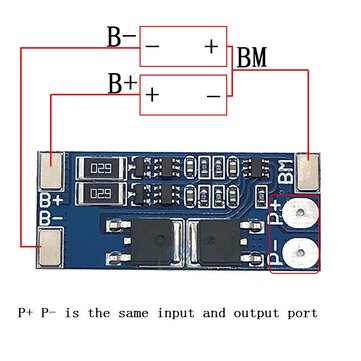

Welding point description:
B+ is connected to the positive electrode of the battery; B??? Connect the negative pole of the battery; MB connects to the connection point before battery 1 and battery 2; P+ is connected to the positive electrode of the charge/discharge terminal (shared by the charge terminal/discharge terminal); P- Connect to the negative electrode of the charge/discharge terminal (shared with the charge terminal/discharge terminal).

Package included:
1 X? 18650 Lithium Battery Protection Board?
