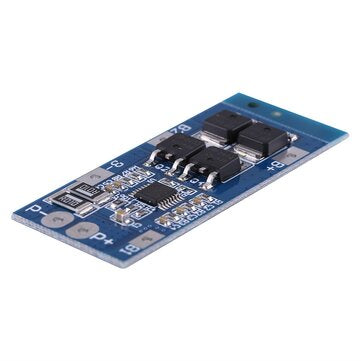

HX-3S-D01 3S 11.1V Li-ion Lithium 18650 Battery Cell BMS PCB Protection Board Overcharge Protection

Features:
Three series of lithium battery protection board. Automatically cancel protection after protection conditions restore. With function of overcharge protection, over discharge protection, short circuit protection, over-current protection. Suitable for lithium battery pack of 11.1V. Quiescent current???50uA, so power consumption is small.
Specifications:
Model: HX-3S-D01 Over voltage range: 4.25-4.35v±0.05v Over discharge voltage range: 2.3-3.0v±0.05v Maximum operating current: 15A Maximum transient current: 15-20A Quiescent current: ???50uA Internal resistance: ???150m?? Charging voltage: 12.6v - 13V Working temperature: -40~+50a?? Storage condition: -40~ +80a?? Effective life: >30000h Size: 51 *23 *4mm/ 2.01 *0.91* 0.16 inch
Short circuit protection: Yes, delayed self recovery The component included: 1 pcs S-8254AA protection chip, 4pcs D403*4
Package Included:
1 x PCB Protection Board(have assembled)
