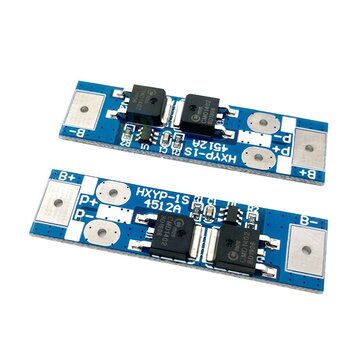

HXYP-1S-4512A 1S 3.2V 3.6V Lithium Iron Phosphate Protection Board Overcharge and Overdischarge Prot
HXYP-1S-4512A 1S 3.2V 3.6V Lithium Iron Phosphate Protection Board Overcharge and Overdischarge Prot
Regular price
$336.00 USD
Regular price
$560.00 USD
Sale price
$336.00 USD
Unit price
per
Couldn't load pickup availability
Specification:
Model: HX-1S-4512A Size: 45*12*3.5mm Overcharge voltage range: 3.75v±0.05v Over-discharge voltage range: 2.1v±0.05v Maximum operating current: 12A Upper limit instantaneous current: 17A Quiescent current: < 30uA Charging voltage: 3.6V Short-circuit protection: can be protected, delayed self-recovery.
Wiring instructions:
B+: battery positive B-: battery negative P+: Battery pack input and output positive P-: Battery pack input and output negative
Package included:
1 x? Lithium Iron Protection Board
Note: This protection board cannot be used for Xenon lights, electric drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children`s car batteries, motors, and 1W fisheye LED lights.
Model: HX-1S-4512A Size: 45*12*3.5mm Overcharge voltage range: 3.75v±0.05v Over-discharge voltage range: 2.1v±0.05v Maximum operating current: 12A Upper limit instantaneous current: 17A Quiescent current: < 30uA Charging voltage: 3.6V Short-circuit protection: can be protected, delayed self-recovery.
Wiring instructions:
B+: battery positive B-: battery negative P+: Battery pack input and output positive P-: Battery pack input and output negative
Package included:
1 x? Lithium Iron Protection Board
Note: This protection board cannot be used for Xenon lights, electric drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children`s car batteries, motors, and 1W fisheye LED lights.
