HY-LW1650 Portable Shortwave Antenna Kit 1.6-50MHz Radio Tuner Long Line Portable Set
HY-LW1650 Portable Shortwave Antenna Kit 1.6-50MHz Radio Tuner Long Line Portable Set
Regular price
$737.00 USD
Regular price
$1,228.33 USD
Sale price
$737.00 USD
Unit price
/
per
Couldn't load pickup availability
Features:
This installation is simple and does not require welding. The height of the antenna is set as high as possible, need to stay away from buildings, trees or other large objects. The ideal installation site requires a space of about 25 meters. If the space is too small, you can trim the excess hauling rope, but at each end of the antenna element and support structure, each side should not be shorter than 1 meter (3-4 feet). If it is still too long, you can shorten the antenna element. But this will reduce the efficiency of the antenna. Widely applicable to shortwave, medium wave duty listening and QRP radio launch. Suitable for erection of temporary places such as camping, emergency communication, etc.
Specifications:
Material: Plastic+metal Frequency range: 1.6-50MHz Impedance: 50?? Power: QRP<5Watts Polarization mode: Horizontal Radiation direction: Omnidirectional Interface: SMA/BNC Antenna length: 16200mm / 637.8in Coaxial cable length: 6000mm / 236.2in Pull wire length: 6000mm / 236.2in Weight: 0.3Kg

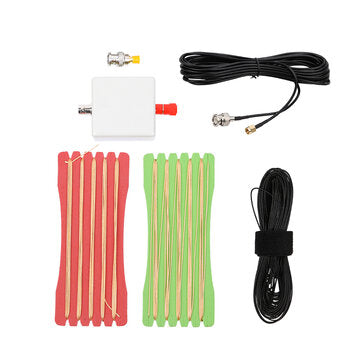

Package Included:
1 *?6M Coaxial Cable 2 *?6M Pull Wire 1 *?16.2M Antenna?Vibrator 1 * Balun 9:1 1 * SMA To BNC Adapter
Details Picture:
This installation is simple and does not require welding. The height of the antenna is set as high as possible, need to stay away from buildings, trees or other large objects. The ideal installation site requires a space of about 25 meters. If the space is too small, you can trim the excess hauling rope, but at each end of the antenna element and support structure, each side should not be shorter than 1 meter (3-4 feet). If it is still too long, you can shorten the antenna element. But this will reduce the efficiency of the antenna. Widely applicable to shortwave, medium wave duty listening and QRP radio launch. Suitable for erection of temporary places such as camping, emergency communication, etc.
Specifications:
Material: Plastic+metal Frequency range: 1.6-50MHz Impedance: 50?? Power: QRP<5Watts Polarization mode: Horizontal Radiation direction: Omnidirectional Interface: SMA/BNC Antenna length: 16200mm / 637.8in Coaxial cable length: 6000mm / 236.2in Pull wire length: 6000mm / 236.2in Weight: 0.3Kg
Package Included:
1 *?6M Coaxial Cable 2 *?6M Pull Wire 1 *?16.2M Antenna?Vibrator 1 * Balun 9:1 1 * SMA To BNC Adapter
Details Picture:
