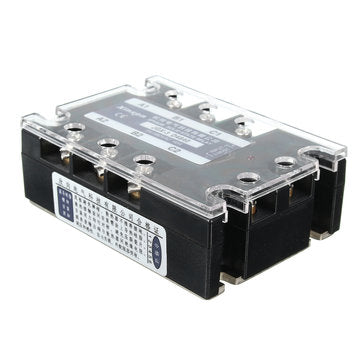

JGX-3 D4840 Three Phase Solid State Relay SSR DC-AC 40A Input 3-32VDC 24-480VAC

Features:? ? Everyone knows that the most important part of solid state relay is silicon control chip.For The chip, we use high quality bi-directional silicon control chip.It features high sensitive,low power consumption , low frequency interference and fast frequency switching speed. ? Specification: ? 1.Name: Solid State Relay 2.Model: JGX-3 D4840 3.Type:Normally Open 4.Rate volatge:3-32VDC 5.Rate current:a???15mA 6.Rated Load Current:40A 7.Load voltage: 24-480VAC 8.Dielectric Strength: 2500VAC 9.Size:10.5*7.5*3.8cm

Package includes:? ? 1 x JGX-3 D4840 40A Three-phase Solid State Relay ? Details pictures:?















, , , , , , ,
