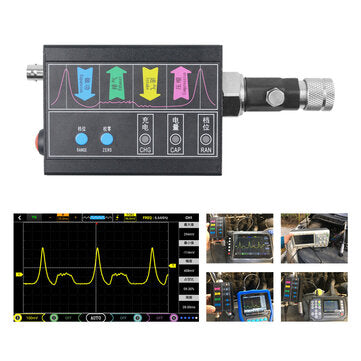

JH APT-100 Special Pressure Transmitter 34. 5/3.45/0.345bar Three Gears Automotive Pressure Componen

Features:

• APT-100 is a test equipment for automotive pressure components (such as cylinder pressure, exhaust pressure)

• Small and easy to use
• Support charging


Specification:

The equipment has three gears:

• 15 to 500psi (34. 5bar)

1V/100psi (6.89bar)

• 15 to 50psi (3. 45bar)

1V/10psi (0.689bar)

• 2. 5 to 5psi (0. 345bar)

1V/1psi (0.0689bar)

• Support one-key calibration (non-connected state)
• Minimum pressure change reaction time> 2uS
• Working temperature -10C-60C
• Battery capacity 3600mA
• Working time 10 hours
• Power-on time is more than 4 seconds
• Dimension???187x75x36mm
• Weight: 418g

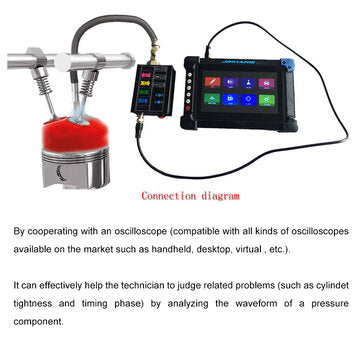

About oscilloscope settings:

• Vertical voltage: 100mv/div
• Time base: 25ms

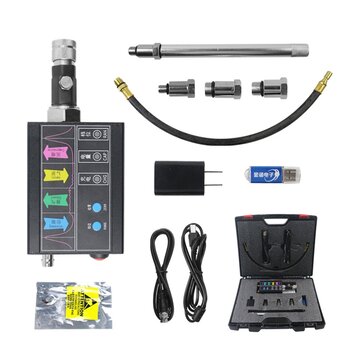

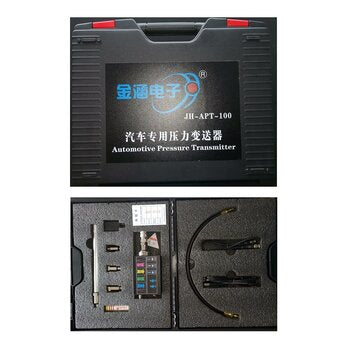

Package included:

1 x?Host 1 x Charger 1 x?Charging cable 1 x?BNC-BNC line 1 x?Connecting hose 1 x?U Disk 1 x?Lengthened connecting aluminum rod 1 x?Small screw 1 x?M10/14/16/18 adapter
Details pictures:
