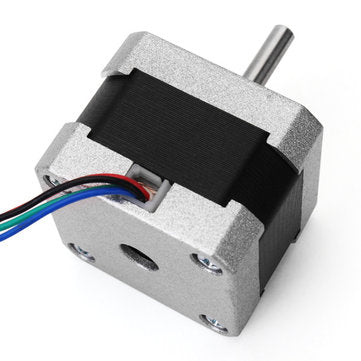

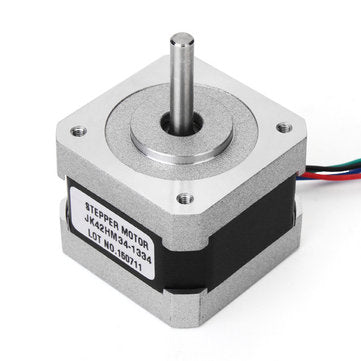

JKM NEMA17 0.9 Degree 42mm Two Phase Hybrid Stepper Motor 1.33A 34mm For CNC

Description: JKM NEMA17 0.9 Degree 42mm Two Phase Hybrid Stepper Motor 1.33A 34mm For CNC ? Specification:
Brand: JKM Model Number:?JK42HM34-1334 Diameter of axle: 5mm Motor length: 34mm Boundary Dimension:42*42mm Size: 42mm x 42mm x 34mm
Holding Torque:2.2Kg.cm Certification: ?CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. ? Genaral Specification:

Item	Specifications
Step Angle	0.9?￣
Temperature Rise	?80a??max
Ambient Temperature	?-20a??~+50a??
Insulation Resistance	100 M?? Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Rate Voltage	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( ?￣)	(L)mm	V	A	??	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HM34-1334	0.9	34	2.8	1.33	2.1	4.2	2.2	4	200	35	0.22

? Package Included: 1x Stepper Motor ? More Details:

, , , , , , , ,
