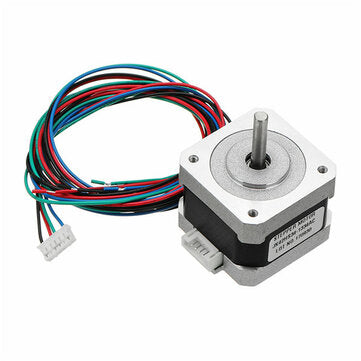

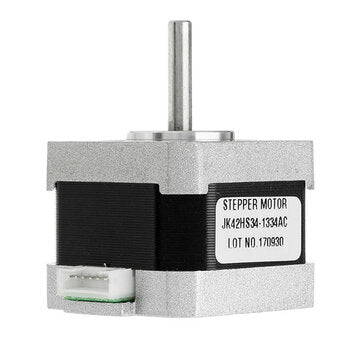

JKM NEMA17 1.842 Hybrid Stepper Motor Two Phase 34mm 2.6kg.cm 1.33A Step Motor

Description:
JKM NEMA17 1.8?￣42 Hybrid Stepper Motor Two Phase 34mm 2.6kg.cm 1.33A Step Motor

Specification:

Brand	JKM
Model	42HS34-1334AC
Motor length	34mm
Diameter of axle	5mm
The front shaft length	24mm
Size	42x42x34mm
Holding Torque	2.6kg.cm
Outgoing line	1000mm
Certification	Certification: CE,ROHS
Scope????????????????????????????????????????????	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8?￣
Temperature Rise	80a??max
Ambient Temperature	-20a??~+50a??
Insulation Resistance	100 M??Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play????????????????????????	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rate Voltage	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( ?￣)	(L)mm	V	A	??	mH	kg.cm	No.	g.cm	g.cm	Kg
42HS34-1334AC	1.8	34	2.8	1.33	2.1	2.5	2.6	4	120	34	0.22

Package Included:
1x Hybrid Stepping Motor

More Details:
