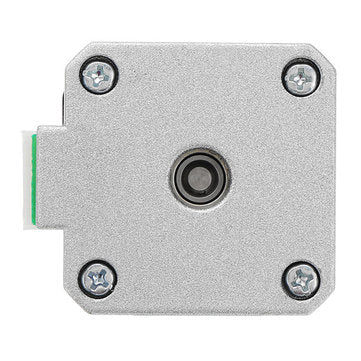

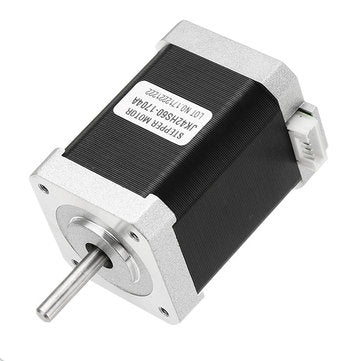

JKM NEMA17 1.842 Hybrid Stepper Motor Two Phase 60mm 7.3kg.cm 1.7A Step Motor

Description:
JKM NEMA17 1.8?￣42 Hybrid Stepper Motor Two Phase 60mm 7.3kg.cm 1.7A Step Motor

Specification:

Brand	JKM
Model	42HS60-1704A
Motor length	60mm
Diameter of axle	5mm
The front shaft length	24mm
Size	42x42x60mm
Holding Torque	7.3 kg.cm
Outgoing line	1000mm
Certification	Certification: CE,ROHS
Scope???	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8?￣
Temperature Rise	80a??max
Ambient Temperature	-20a??~+50a??
Insulation Resistance	100 M??Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force??????????????????	10N

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rate Voltage /Phase	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Mass
	( ?￣)	(L)mm	V	A	??	mH	kg.cm	No.	Kg
42HS60-1704A	1.8	60	5.1	1.7	3.0	6.2	7.3	4	0.55

Package Included:
1 x Step motor

More Details:

















, , , , , , ,
