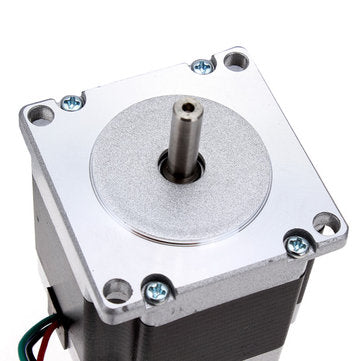

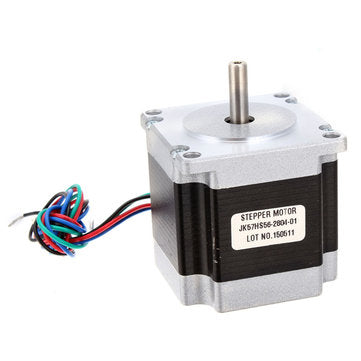

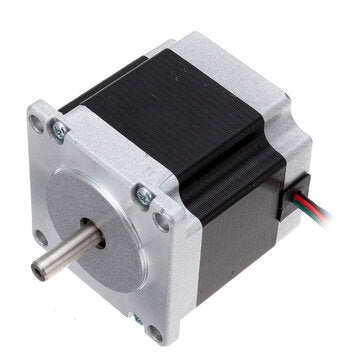

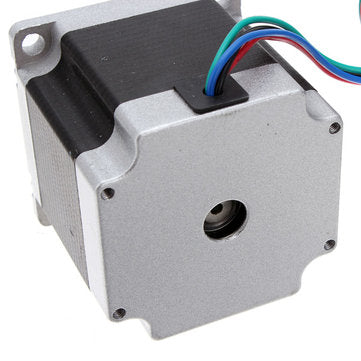

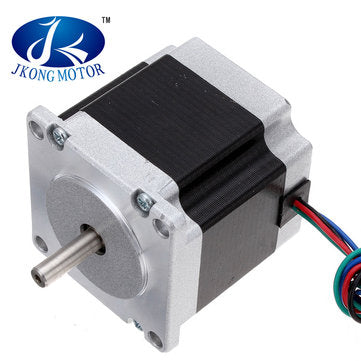

JKM NEMA23 1.857 Hybrid Stepper Motor Two Phase 56mm 1.26N.m 2.8A

Description: JKM NEMA23 1.8??57 Hybrid Stepper Motor Two Phase 56mm Motor?1.26N.m 2.8A

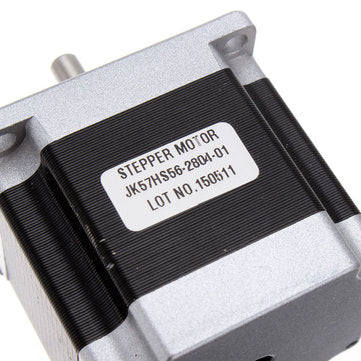

? Specification: Brand:?JKM Model:?JK57HS56-2804 Motor length: 56mm Diameter of axle: 6.35mm The front shaft length: 20.6mm Size: 57mm x 57mm x 56mm Outgoing line: 300mm (Plug is not included) Certification: ?CE Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8??
Temperature Rise	80a??max
Ambient Temperature	-20a??~+50a??
Insulation Resistance	100 M??Min.,?500VDC
Dielectric Strength	500VAC for 1 minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	? Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads ?	Detent Torque	Rotor Inertia	Mass
	( ??)	(L)mm	?A	??	mH	N.m	No.	g.cm	g.cm	Kg
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.26	4	350	280	0.68 ?

Features: High holding torque at high speed. A stepper motor is an electric motor that is able to create sharp movements. It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

Wiring Diagram:

Package Included: 1x Hybrid Stepping Motor
