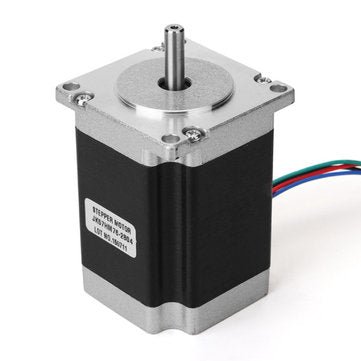

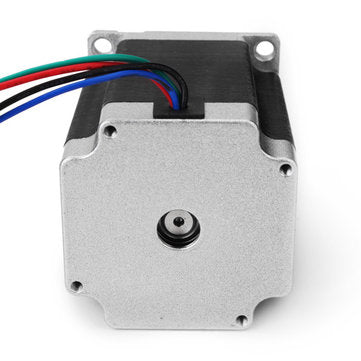

JKM NEMA23 57mm Two Phase Hybrid Stepper Motor 0.9 Degree 76mm 2.8A
JKM NEMA23 57mm Two Phase Hybrid Stepper Motor 0.9 Degree 76mm 2.8A
Regular price
$1,070.00 USD
Regular price
$1,783.33 USD
Sale price
$1,070.00 USD
Unit price
per
Couldn't load pickup availability
Description: JKM NEMA23 57mm Two Phase Hybrid Stepper Motor 0.9 Degree 76mm? 2.8A
Specification:
Brand: JKM Model Number: JK57HM76-2804 Diameter of axle: 6.35mm Motor Length: 76mm Boundary Dimension:57*57mm Size: 57mm x 57mm x 76mm
Holding Torque:18Kg.cm Certification: ?CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. ? Genaral Specification:
Electrical Specification:
? Package Included: 1x Stepper Motor ? More Details:
Specification:
Brand: JKM Model Number: JK57HM76-2804 Diameter of axle: 6.35mm Motor Length: 76mm Boundary Dimension:57*57mm Size: 57mm x 57mm x 76mm
Holding Torque:18Kg.cm Certification: ?CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. ? Genaral Specification:
| Item | Specifications |
| Step Angle | 0.9?￣ |
| Temperature Rise | ?80a??max |
| Ambient Temperature | ?-20a??~+50a?? |
| Insulation Resistance | 100 M?? Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Rate Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( ?￣) | (L)mm | V | A | ?? | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| JK57HM76-2804 | 0.9 | 76 | 3.2 | 2.8 | 1.13 | 5.6 | 18 | 4 | 680 | 480 | 1.1 ? |
? Package Included: 1x Stepper Motor ? More Details:
