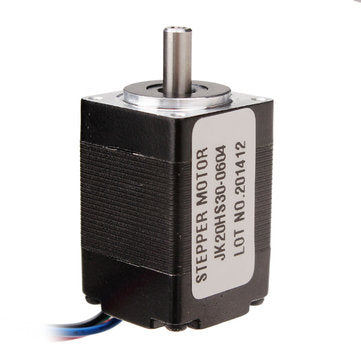

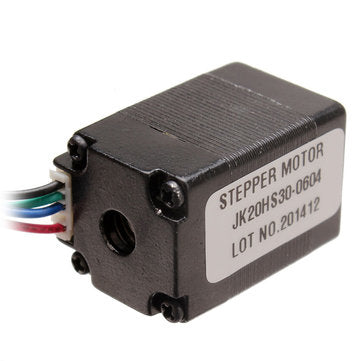

JKM NEMA8 1.820 Hybrid Stepper Motor Two Phase 30mm Motor For CNC Mill Router

Description: JKM NEMA8 1.8?￣20 Hybrid Stepper Motor Two Phase 30mm Motor?For CNC Mill Router Cutter
? Specification: Brand:?JKM Model: JK20HS30-0604? Motor length: 30mm
Diameter of axle: 4mm The front shaft length: 10mm Outgoing line: 300mm (Plug is not included) Certification: ?CE Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8?￣
Temperature Rise	80a??max
Ambient Temperature	-20a??~+50a??
Insulation Resistance	100 M??Min.,?500VDC
Dielectric Strength	500VAC for 1 minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	? Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads ?	Rotor Inertia	Mass
	( ?￣)	(L)mm	?A	??	mH	g.cm	No.	g.cm	Kg
JK20HS30-0604	1.8	30	0.60	6.5	1.5	180	4	2	0.06 ?

Features: High holding torque at high speed. A stepper motor is an electric motor that is able to create sharp movements. It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

Wiring Diagram:


Package Included: 1x Hybrid Stepping Motor
