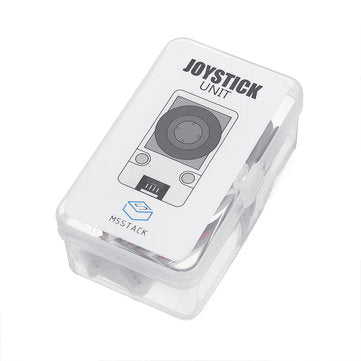

Joystick Module MEGA328P I2C/Grove Connector Compatible X/Y Axis & Button Cap

Description:

JOYSTICK, we have two types of JOYSTICKs one is bui ld on a panle compatible with FACES Kit, this is the M5Unit version of?JOYSTICK

JOYSTICK is very similar to the 'analog' joystick on PS2 (Play Station 2) controllers. The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. The joystick also has a push button that could be used for special applications. Therefore, the entire Unit can output X-Y motion signals in both directions and Z direction.

As designed in the schematic, the Joystick X dimension is connected to pin A0 of MEGA328, the Joystick Y dimension is connected to pin A1 on MEGA328, the Joystick Z dimension is connected to pin A2 on MEGA328.

This Unit communicates with the M5Core via the GROVE A interface. It's I2C address is 0x52. By reading the data transferred from JOSTICK, you can obtain the motion information of JOYSTICK.

Product Features:

• Output value of X, Y direction: 10 ~ 250
• Output value of Z direction is (0: released; 1: pressed)
• Software Development Platform : for , UIFlow(Blockly, Python)
• Two Le go-compatible holes
• Product Size: 48.2mm x 24.2mm x 22.5mm
• Product weight: 11.4g

Package Included:

• 1x JOYSTICK Unit
