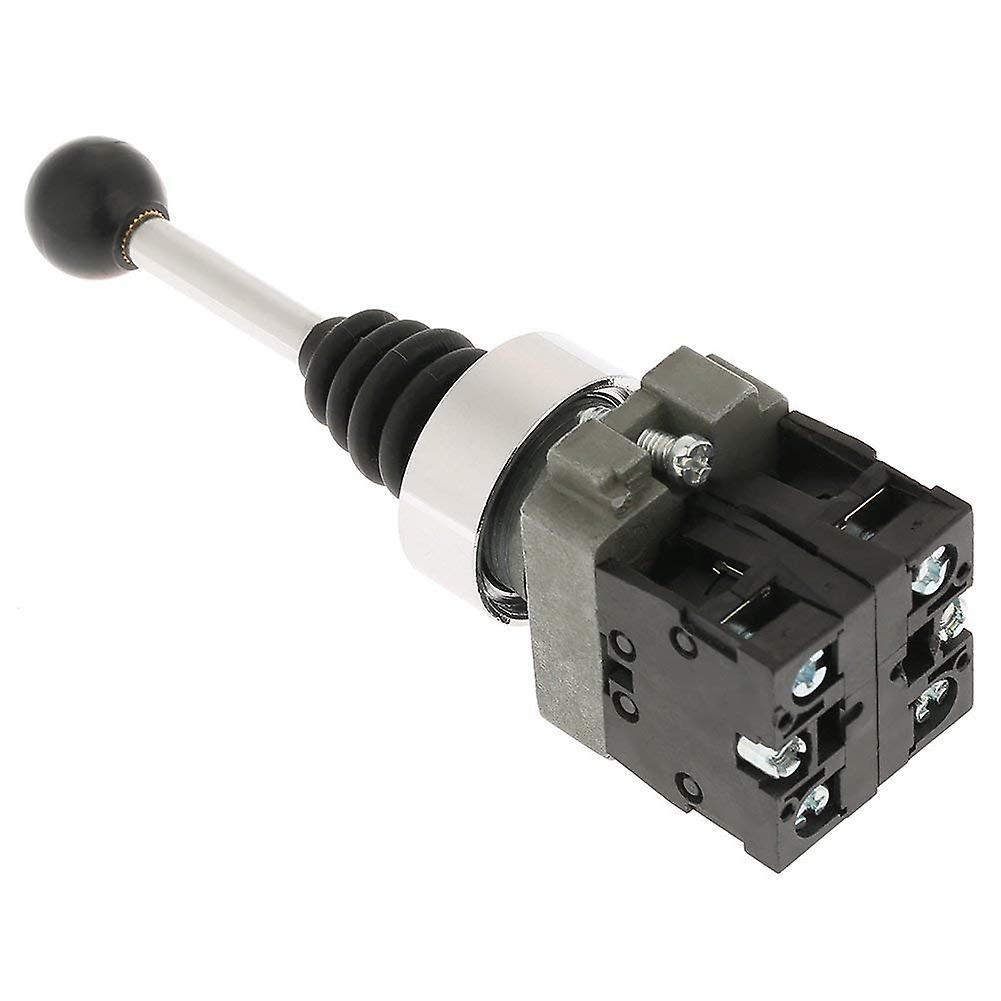

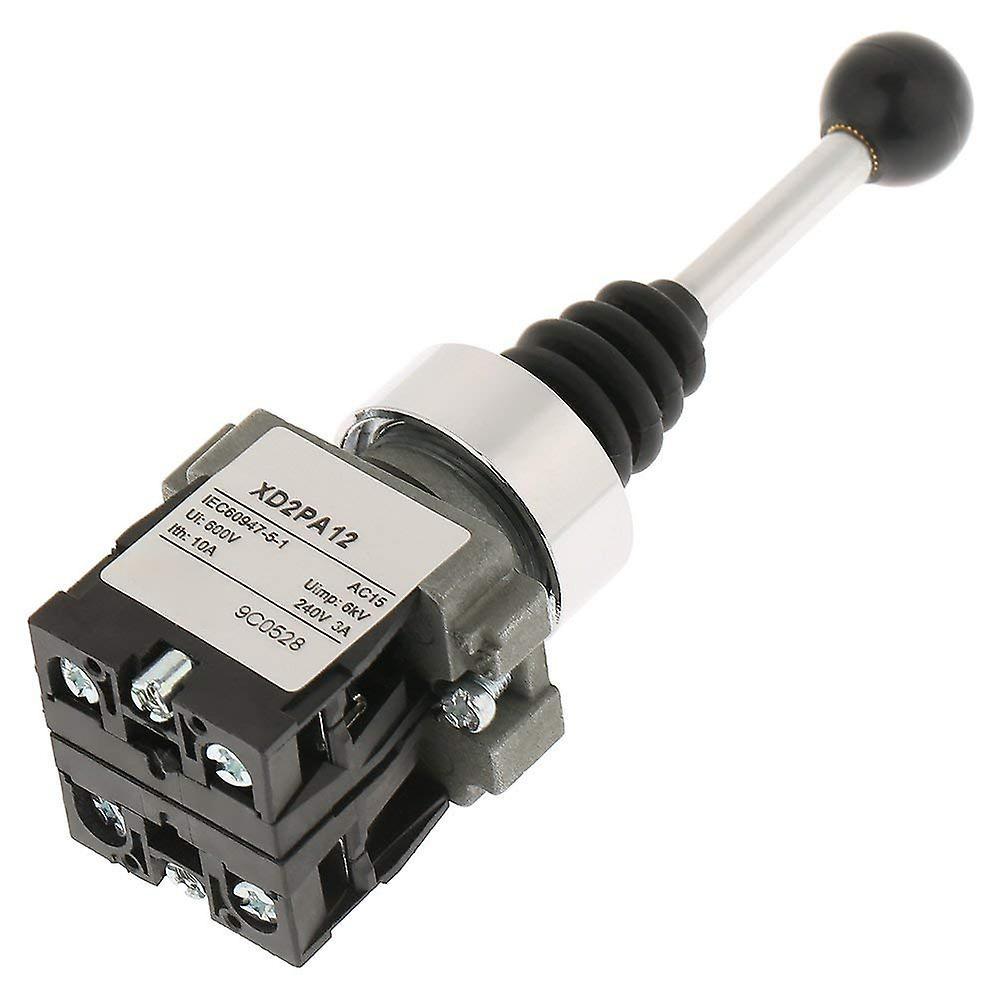

Joystick Switch Xd2pa12 Ac3000v Cross Switch 2 Single Lever Switches

This instant joystick switch is widely used in industrial control AC 50Hz and DC circuits. It can control magnetic starters, contactors, relays and other circuits. The rubber sleeve is waterproof, oil-proof and dust-proof. The joystick switch is a momentary switch, 2NO type, so there are 2 normally open contacts. The switch is easy to assemble and operate, and has a long service life.Model: XD2PA12Rated voltage: 220V/380VNominal current: 5 A / 10 AInstallation opening: 22mm in diameterElectrical life: more than 500,000 timesMechanical life: more than 500,000 timesStandard operating environment:Ambient temperature: -25~+55 degrees Celsius (no ice)Working humidity: 45~85%RH (non-condensing)Contact resistance: less than or equal to 50 m ohmInsulation resistance: greater or equal to 100 ohmMaximum dielectric strength: 3000 volts, AC 50 HzVibration: 50Hz, amplitude: about 1 mmImpact resistance: more than 10 m/s2 (about 10 G)Protection level: IP55Overall dimensions: 12.3 x 4 cmWeight: 124 gramsColour: blackMaterial: metalPackage Contents:1 * Self-locking joystick switchOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
