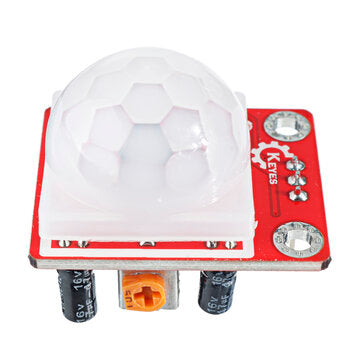

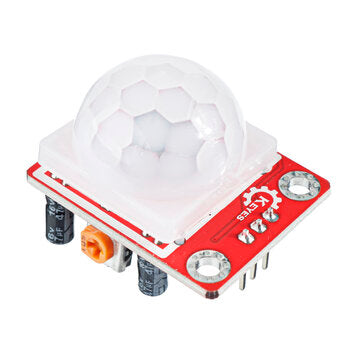

Keyes Brick Human Body Infrared Pyroelectric Sensor(Pad hole) with Pin Header Module Digital Signal

Description:
This module is compatible with various MCU control boards, such as MCU. Module contains 2?kind of interface for you . One is the anti-reverse insertion white terminal with a pitch of 2.54mm,we can use the module`s own wire to connect to the microcontroller. To facilitate wiring, we also specially designed an extension that is fully compatible with this module and UNO R3 microcontroller?board. The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight connected to the microcontroller.
Specification:
Working voltage: DC 5V-15V Quiescent current: <20uA Interface: Anti-reverse interface PIN interface Hole size: 3mm in diameter Trigger mode: L can not be triggered repeatedly / H can be triggered repeatedly Maximum detection distance: 7m Sensing angle: <100 degree cone angle Wire length: 200mm Control signal: digital signal Light color: warn light Size:37*26*25mm Weight: 6.8g
Package included:
1 x Human Body Infrared Pyroelectric Sensor (the other items are not includes)
