ZHIQIAN

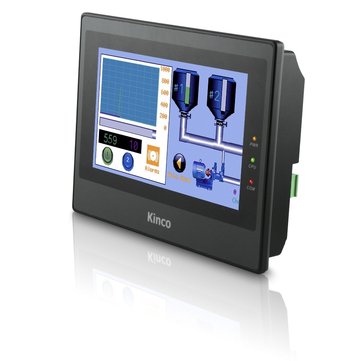

Kinco MT4434T HMI Touch Screen 7 Inch 800*480 1 USB Host New Human Machine Interface
Kinco MT4434T HMI Touch Screen 7 Inch 800*480 1 USB Host New Human Machine Interface
Regular price
$2,173.00 USD
Regular price
$3,621.67 USD
Sale price
$2,173.00 USD
Unit price
per
Couldn't load pickup availability
Features: ? 1. 65536 color TFT true color display, support for BMP, JPG, GIF and other formats of image import; 2. High-performance 32-bit RISC CPU with a frequency of up to 800MHz, fast processing capability to ensure higher efficiency; 3. 4.3??? to 12.1??? multiple display sizes; 4. MT4000TE series is equipped with 10M/100M adaptive Ethernet interface; 5. Integrated 1USB Slave; 6. Powerful Kinco HMIware configuration software function, support C language macro script, support standard database SQL statement; ? Model: MT4434T
? Performance specification:
? LCD size: 7a?2a?2 TFT Resolution: 800*480 pixels Display color: 65536 color Brightness: 250 cd/m2 Backlight: LED Touch screen: 4-wire precision resistor network (surface hardness 4H) LCD life: 50000 hours CPU: 400MHz RISC Memory: 128M FLASH+64M DDR2 RTC & Recipe Memory: Real Time Clock + 512KB Scalable storage: Not supported Print port: USB SLAVE / serial port Ethernet: not supported Program download: 1 USB SLAVE interface / serial port Communication port: COM0: RS232/RS485-2/RS485-4, COM2: RS232 Extended interface: not supported ? Electrical Specifications:
? Rated power: 7.2W Line voltage: DC24V Input range: 12~28VDC Allow power loss: <3ms Insulation resistance: more than 50M??@500VDC Withstand voltage test: 500V AC for 1 minute ? Structural specification:
? Shell color: black Housing material: fireproof ABS plastic Dimensions: 204 ?? 150 ?? 37mm Mounting hole size: 192 ?? 138mm Weight: 0.5 Kg ? Environmental specifications:
? Working temperature: 0~45?￣C Operating humidity: 10 to 90% RH (no condensation) Storage temperature: -10 ~ 60 ?￣ C Storage humidity: 10 to 90% RH (no condensation) Seismic resistance: 10 to 25 Hz (2G/30 minutes in X, Y, and Z directions) Cooling method: natural air cooling certified product Panel protection level: meets IP65 requirements ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?EN61000-6-2:2005, EN61000-6-4:2007
Package Include:
1 x?MT4434T human machine interface HMI touch screen
Details Pictures:
?
? Performance specification:
? LCD size: 7a?2a?2 TFT Resolution: 800*480 pixels Display color: 65536 color Brightness: 250 cd/m2 Backlight: LED Touch screen: 4-wire precision resistor network (surface hardness 4H) LCD life: 50000 hours CPU: 400MHz RISC Memory: 128M FLASH+64M DDR2 RTC & Recipe Memory: Real Time Clock + 512KB Scalable storage: Not supported Print port: USB SLAVE / serial port Ethernet: not supported Program download: 1 USB SLAVE interface / serial port Communication port: COM0: RS232/RS485-2/RS485-4, COM2: RS232 Extended interface: not supported ? Electrical Specifications:
? Rated power: 7.2W Line voltage: DC24V Input range: 12~28VDC Allow power loss: <3ms Insulation resistance: more than 50M??@500VDC Withstand voltage test: 500V AC for 1 minute ? Structural specification:
? Shell color: black Housing material: fireproof ABS plastic Dimensions: 204 ?? 150 ?? 37mm Mounting hole size: 192 ?? 138mm Weight: 0.5 Kg ? Environmental specifications:
? Working temperature: 0~45?￣C Operating humidity: 10 to 90% RH (no condensation) Storage temperature: -10 ~ 60 ?￣ C Storage humidity: 10 to 90% RH (no condensation) Seismic resistance: 10 to 25 Hz (2G/30 minutes in X, Y, and Z directions) Cooling method: natural air cooling certified product Panel protection level: meets IP65 requirements ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?EN61000-6-2:2005, EN61000-6-4:2007
Package Include:
1 x?MT4434T human machine interface HMI touch screen
Details Pictures:
?
