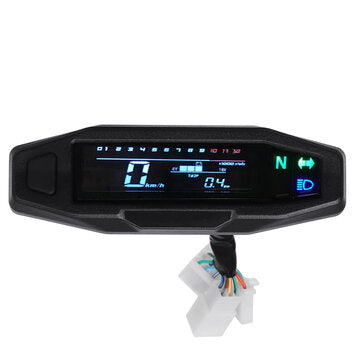

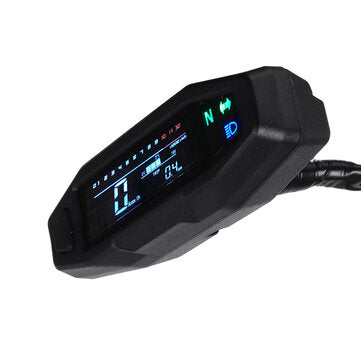

LCD Digital Motorcycle Multi Gauge Bar Speedometer Odo Tachometer Gear Indicator

Note: The product don`t have sensor and wire harness,you can buy it in this link.

Description:

1.Max speed : 199km/h

2.Max : 999.9km

3.Max rpm:1200 rpm

4.blue wire ~High beam

5.yellow-red ~4 level

6.blue-red~2 level

7.blue-white~RPM

8.orange~left turning light

9.green~power

10.black~positive electrode

11.yellow-voltage 5v

12.brown-white~5 level

13.green-black~3 level

14.pink~1 level

15.red~speed

16.green-red~ N level

17.light blue~right turning light

?

Feature:

1.ALL-IN-ONE Function: Speedometer, Odometer, Tachometer, Fuel Level Display, Left and Right Indicator, Battery

2.High Temperature Resistant and Fireproof ABS Material: Safe and Environmental

3.Universal Compatible for 12V Motorbike Car / Boat / ATV / UTV / Camper / Caravans / Travel Trailer etc

4.Back Light, HD Digital Display

?

Specification:

Material	?Plastic
Color	?Black
Size	?14x4.5cm/ 5.51x1.77

?

Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2.Please allow 0.5-1 inch difference due to manual measurement. (1inch=2.54cm)

3.Installation Instructions is not included. Professional Installation Is Highly Recommended!

?

Package Included:

1 X	?Digital Odemeter Tachometer

?
