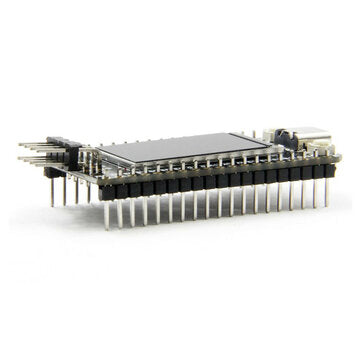

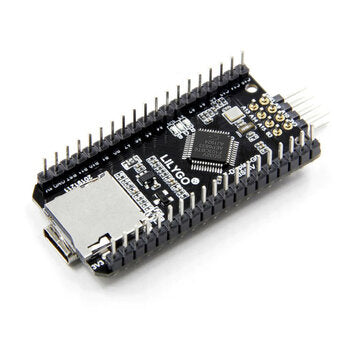

LILYGO TTGO T-Display-GD32 RISC-V 32-bit Core Minimal Development Board 1.14 IPS

Feature:

Hardware Specifications
Chipset	GD32VF103CBT6
FLASH	128KB
SRAM	32 KB
On-board clock	108MHz crystal oscillator
Working voltage	2.7V-3.6V
Power	1/3 Cortex-M3
Peripheral
Button	BOOT,?RESET
LCD	ST7789, 1.14 IPS, 240x135
USBtoTTL	CP2104
Modular interface	TIMER, UART, SPI, I2C,?PWM,?ADC,?DAC, CAN,?USBOTG
Working temperature range	?-40?￣C~ +85?￣C
Weight	10g
Size	51.49 x 25.2 x 10mm
Periphera	Button, RGB LED, SD slot, LCD
Power Supply Specifications
Power supply input	USB 5V/1A
Charging current	500mA
Battery input	3.7-4.2V
USB	TYPE-C
Peripheral functions	a??Timer: Use 16-bit timer * 4 Basic 16-bit timer * 2 Advanced 16-bit timer * 1 a??USART * 3 a???I2C * 3 a???SPI * 3 a???CAN * 2 a???USBFS (OTG) * 1 a?|ADC (10 channel) * 2 a???DAC * 2?
IO	Standard 2.54mm pin header interface, leading to all resources of the chip
Interface	Lead out LCD, MICRO SD card, JAG and other interfaces

Package includes:

1 x?Minimal Development Board
