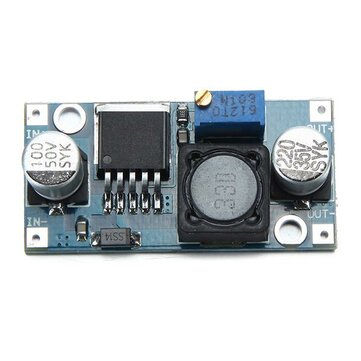

LM2596 DC-DC Verstellbar Step Down-Schaltregler Power Supply Module

DC-DC Converter Buck Voltage LM2596 Low Ripple Step Down Module Power Supply? is available now from our US? warehouse

Free shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse

LM2596 DC-DC Verstellbar Step-Down-Schaltregler Power Supply Module

Description:

Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)

Features:

Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40? to +85 ) (output power 10W or less)
Full load Temperature rise: 40
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Dynamic Response speed: 5% 200uS
Dimension: 43*20*14mm (L*W*H)

Package Included:

1x LM2596 DC-DC Step-down Module





, , ,
