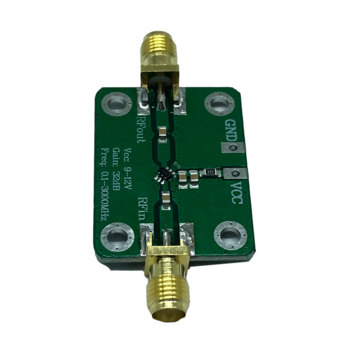

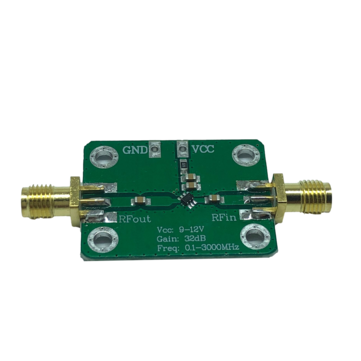

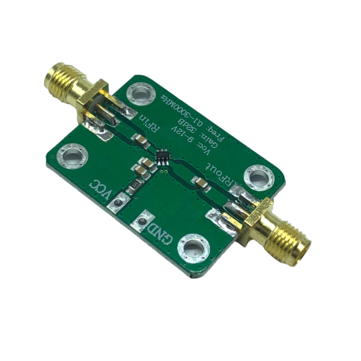

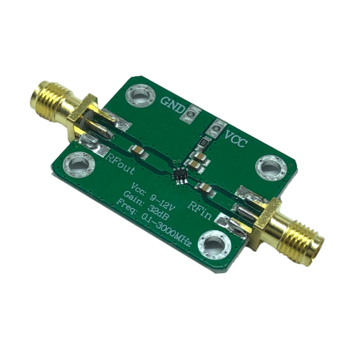

LNA 0.1-3000MHz Gain 32dB Radio Frequency Broadband Amplifier Low Noise Amplifier Module

Description:
This amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. It can be used in various radio frequency receiving front ends to increase the communication distance! Wide range of shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers and other places where low-noise and small-signal radio frequency amplification is required.
Technical Parameters:
1. Operating frequency: 0.1-3000MHz 2.?Working voltage: 9-12V (suitable for lithium battery power supply) 3.?Working current: 27mA 4.?Amplification gain: 32dB (typical value) F= 0.1MHz, gain=32dB F= 500Mhz gain=32dB F=1000MHz gain=32dB F=1500Mhz gain=32dB F=2000MHz gain=32dB F=2500MHz gain=30dB F=3000MHz gain=29dB 5.?Maximum output: 13dBm (20mW) 6.?System impedance: 50 ohms 7.?Connector model: SMA-K (female, outer screw and inner hole) 8.?Dimensions: 25*33mm (excluding connectors) 9.?Product weight: 6g
Instructions:
RFin: Input signal amplification RFout: output amplified signal VCC: Positive power supply (suitable for lithium batteries) GND: negative power supply
Package included:
1 x RF Amplifier
