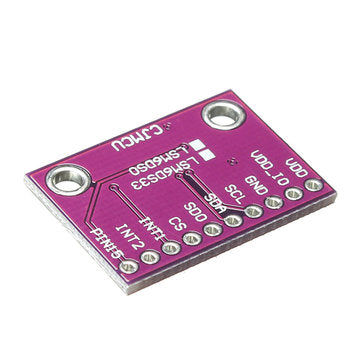

LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module
LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module
Regular price
$486.00 USD
Regular price
$810.00 USD
Sale price
$486.00 USD
Unit price
per
Couldn't load pickup availability
Features:
? - Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz. - a??Always ona?? experience with low power consumption for both accelerometer and gyroscope - Smart FIFO up to 8 kbyte based on features set - Compliant with Android K and L - ±2/±4/±8/±16 g full scale - ±125/±245/±500/±1000/±2000 dps full scale - Analog supply voltage: 1.71 V to 3.6 V - Independent IOs supply (1.62 V) - Compact footprint, 3 mm x 3 mm x 0.86 mm - SPI/I2C serial interface with main processor data synchronization feature - Embedded temperature sensor - ECOPACK?, RoHS and a??Greena?? compliant
Package included:
1 x? 6-Axis Inertial Sensor 6DOF Module
?
,
,
? - Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz. - a??Always ona?? experience with low power consumption for both accelerometer and gyroscope - Smart FIFO up to 8 kbyte based on features set - Compliant with Android K and L - ±2/±4/±8/±16 g full scale - ±125/±245/±500/±1000/±2000 dps full scale - Analog supply voltage: 1.71 V to 3.6 V - Independent IOs supply (1.62 V) - Compact footprint, 3 mm x 3 mm x 0.86 mm - SPI/I2C serial interface with main processor data synchronization feature - Embedded temperature sensor - ECOPACK?, RoHS and a??Greena?? compliant
Package included:
1 x? 6-Axis Inertial Sensor 6DOF Module
?
, ,
