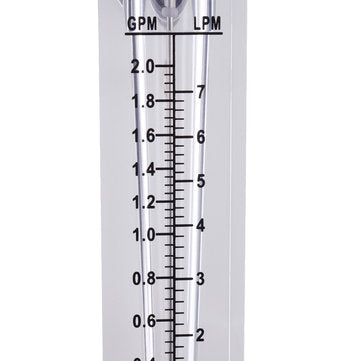

LZM-15 1/2 Inch 0.2-2.0 GPM 1-7 LPM Water Liquid Inline Flow Meter Rotameter

Features:

LZM-series panel type flow meter is usually installed on the control panel,its water inlet and outlet gaps are both on the back,so before installation,clients should set the connecting mouth for water inlet and outlet and fix the screw hole. ? Specification:

Model:LZM-15
Thread Port Size : 1/2 Material : Acrylic, Stainless Steel, Plastic Scale Range : GPM: 0.2-2.0 LPM: 1-7 Net Weight : 144g


Technical parameters of LZM- series flow meter

Model	Measure Range			Screw Thread	Accuracy
panel type	Liquid		Gas
	GPM	LPM	N m3/h?
LZM-15	0.1a??0.5 0.2a??1 ? 0.2a??2 ? 0.3a??3 ? 0.5a??5	?0.1a??2 1a??4 ?? 1a??7 ? ?1a??11 ? ?2a??18	0.1a??1 0.25a??2.5 0.3a??3 0.6a??6 1.2a??12 1.6a??16 2.5a??25 ?	ZG 1/2 ?(1/2BSPT)? ? ?ZG 1/4 ?(1/4BSPT)	±4%
LZM-25	1a??10 ?? 2a??15 2a??20 5a??30 5a??40 15a??35	5a??35 ?? 10a??60 10a??70 ? 20a??110 ???50a??130 10a??150	2.5a??25 6a??60 10a??100 ???16a??160 ???25a??250 30a??300 ??????	ZG 1 ???(1BSPT)
LZM-50	10a??50 ? 10a??60 ? 20a??80 25a??100 30a??150	50a??190 20a??220 90a??300 100a??350 ?100a??550	?	ZG 2 ????(2BSPT)

? Structure Chart?and Outline size?of LZM Series Panel?Type?Flow Meter



?

Model	Outline size?(mm)
	A	B	C	D	E	F	G	H
LZM-15	176.5	31	171	34	26.5	76	127	26
LZM-25	232	44	225	45	33	100	160.5	35.5
LZM-50	296	70	281	82.5	50	100	189.5	62.5

Remark:The fixed screw of center distance F is M6??11
1).Working Pressure:a???1.5MPa
2).Operating Temperature:0~90 C
3).Customized specifications are available?

Package included:

1 x Flow Meter ? Details pictures:
