M5Stack ATOM RS-485 M5Atomic TTL & RS485 Converter SP3485EE RS485 Multipoint Communication Industr

Description:

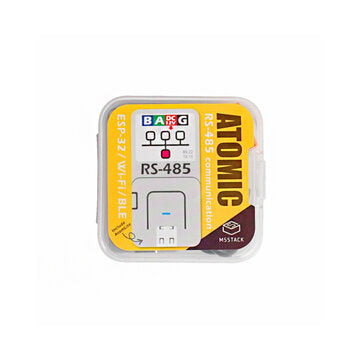

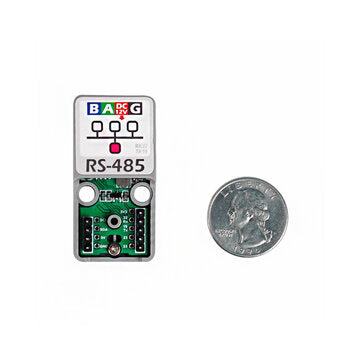

ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It`s function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports amulti-point system and is widely used in industry. When the applications equipment needs to communicate and be controlled through RS485, ATOM RS-485 is an excellent choice. A DC/DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.
Features:
- Compatible ATOM Matrix/ATOM Lite - SP3485EE - Built-in DC/DC - Multipoint communication
Package Included:
- 1x ATOM RS-485 - 1x ATOM Lite - 1x Key - 1x M2*8mm Heagon socket cup head machine screw - 1x 18cm TYPE-C Cable
Applications:
- RS485 Multipoint communication - Industrial control node - RS485 to WiFi
Specification:

Specification	Parameter
External?port	VH-3.96?4P
Conversion?level	5V<->12V
level-conversion?IC	SP3485EE
DC-DC	A0Z1282CI
net?weight	28g
Gross?weight	38g
Product?Size	24*48*18mm
Package?Size	54*54*20mm
Case?material	Plastic?(?PC?)

EasyLoader:?

EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host?, M5StickC/V/T/ATOM series can be used without driver)
Related Link:

Pin Map:

ATOM	GPIO22	GPIO19	5V	GND
ATOM?RS-485	RX	TX	5V	GND

Schematic:?
Example:
1. Arduin IDE
2. UIFlow
