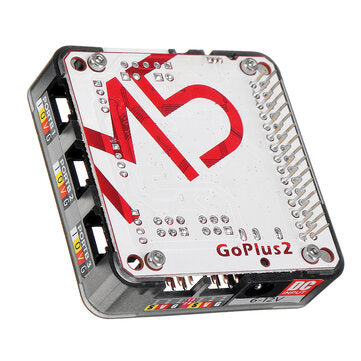

M5Stack Goplus2 DC Motor and Servo Driver Module STM32F0 IR Transmitter and Receiver Suit for ESP3
M5Stack Goplus2 DC Motor and Servo Driver Module STM32F0 IR Transmitter and Receiver Suit for ESP3
Regular price
$784.00 USD
Regular price
$1,306.67 USD
Sale price
$784.00 USD
Unit price
per
Couldn't load pickup availability
Description:

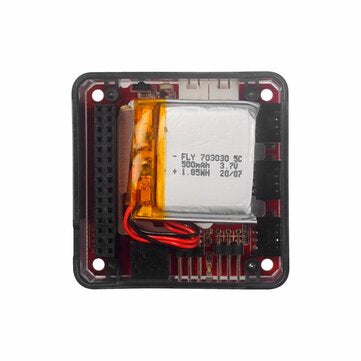

GoPlus2 is a stackable multi-functional motor and servo control module. The master control adopts STM32F030C8T6. The module is equipped with 2-way DC motor drive interface and 4-way servo drive interface. Three PORT-B interfaces(Analog Input,Digital Output,Digital Input) can be expanded. Built-in 500mAh battery and support infrared (IR) transmission and receive. In order to meet the requirements of multi-channel interface power supply at the same time, a DC power interface is provided for external power supply, battery can be charged through the M5Core with USB-C.
Communication protocol: IIC(0x38)
Features:
2x DC motor interface 4x Servo interface IR transmit & receive 3x expand PORT B STM32F030C8T6 Built in 500mAh battery
Package Included:

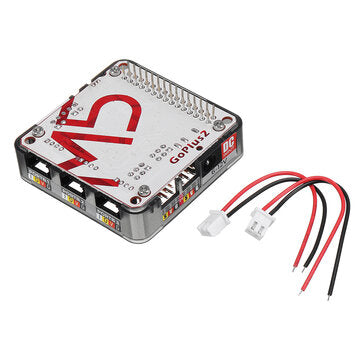

1x GoPlus2 Module 2x DC Motor Cable
Application:
Actuator / motor driver Acquisition and control of multiple input and output signals Infrared controller DIY Toy base
Specification:
Schematic:
PinMap:
Protocol Manual:
Example:
GoPlus2 is a stackable multi-functional motor and servo control module. The master control adopts STM32F030C8T6. The module is equipped with 2-way DC motor drive interface and 4-way servo drive interface. Three PORT-B interfaces(Analog Input,Digital Output,Digital Input) can be expanded. Built-in 500mAh battery and support infrared (IR) transmission and receive. In order to meet the requirements of multi-channel interface power supply at the same time, a DC power interface is provided for external power supply, battery can be charged through the M5Core with USB-C.
Communication protocol: IIC(0x38)
Features:
2x DC motor interface 4x Servo interface IR transmit & receive 3x expand PORT B STM32F030C8T6 Built in 500mAh battery
Package Included:
1x GoPlus2 Module 2x DC Motor Cable
Application:
Actuator / motor driver Acquisition and control of multiple input and output signals Infrared controller DIY Toy base
Specification:
| Resources | Parameter |
| Main?control?chip | STM32F030C8T6 |
| Expand?interface | DC?Motor?x?2,PORT-B?x?3,?Servo?x?4 |
| motor?drive | HR8833?H-bridge?drive |
| IR | Transmit?and?Receive |
| Battery | 500mAh |
| Net?Weight | 38g |
| Gross?Weight | 58g |
| Product?Size | 54*54*13mm |
| Package?Size | 95*65*25mm |
Schematic:
PinMap:
| M5Core(GROVE?A) | GPIO35 | GPIO5 |
| IR | Receive | Transmission |
