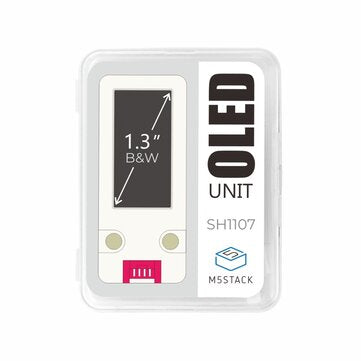

M5Stack OLED 1.3-inch Expansion Screen Black/White Display Panel SH1107 Driving Module

Description:?
Unit OLED is a 1.3-inch OLED expansion screen unit. It adopts SH1107 drive scheme, supports black/white display, and the resolution is 128*64. The driver chip selects the I2C communication interface, and the user can mount it to the I2C bus of the existing device when in use, which saves IO. The back of the screen is integrated with a magnetic design, which can easily be fixed on the metal surface by adsorption. The OLED screen extension is suitable for being embedded in various instruments or control devices that need to display simple content as a display panel.
Product Features:?
OLED display panel SH1107 drive scheme Display color: black/white I2C communication interface 128*64 resolution Viewing angle: full viewing angle Magnetic back design
Specification:?
Working current: 58mA Communication protocol:? I2C address: 0x3C Display size: 14.7 ?? 29.42???mm??? Pixel pitch: 0.17??0.17???mm??? Pixel size: 0.15??0.15???mm??? Viewable: Full view Operating temperature: 32?￣F to 104?￣F ( 0?￣C to 40?￣C ) Net weight: 9.3g Gross weight: 20g Product Size: 24*56*8mm Package Size: 67*53*12mm Case material: Plastic (PC)
Package included:
1 x Unit OLED 1 x HY2.0-4P Cable
Applications:? Information display
PinMap:

M5Core(PORT A)	GPIO22	GPIO21	5V	GND
Unit OLED	SCL	SDA	5V	GND

Schematic:

Related Link:
Datasheet

Library
Example: Arduin0
