Machifit 25GA370 DC 12V Micro Gear Reduction Encoder Motor with Mounting B... (ROTATE SPEED: 190RPM)

SELECTED OPTION:
ROTATE SPEED: 190RPM

Descriptions:

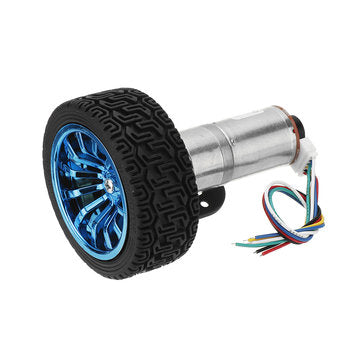

Machifit 25GA370 DC 12V Micro Gear Reduction Motor 25mm Extended Shaft with Mounting Bracket and Wheel
? Specifications: Material: Metal Voltage: DC 12V Size(approach):
Output Shaft Dia.: 4mm
Output Shaft Length: 12mm Applications:?For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,?
robots, camera rocker electric paper-cutting paper machines, etc.
Parameter:?

Voltage?	No-load Speed	RATIO	No-load		Rated-load			Stall		?
			Current? (A)?	?Speed(rpm) ±10%rpm	Torque (kg.cm)	Speed(rpm) ±10%rpm	Current? (A)?	Torque? (kg.cm)	Current? (A)?	L Size
DC 12.0V	110rpm	1:75	a???0.15	110	8.0	65	a???0.75	a???9.0	1.8	23
DC 12.0V	190rpm	1:45	a???0.15	190	5.0	100	a???0.75	a???9.0	1.8	21

Features:
- All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - The terminal with red dot or + is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 x Gear Motor
1 x?Mounting Bracket
1 x Wheel
