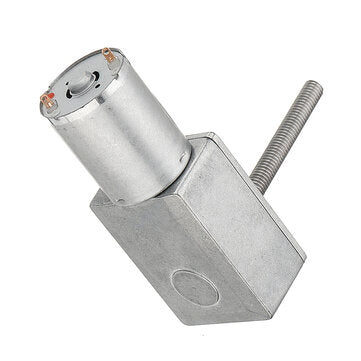

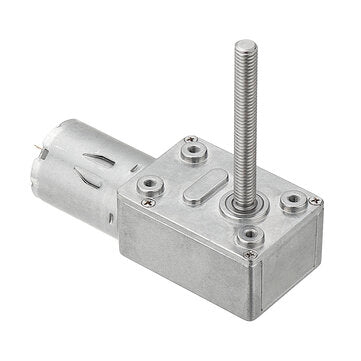

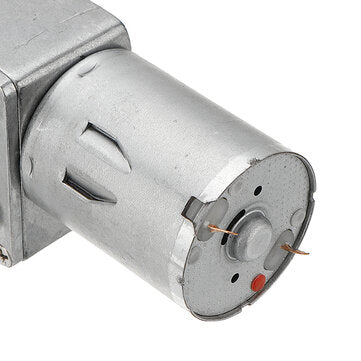

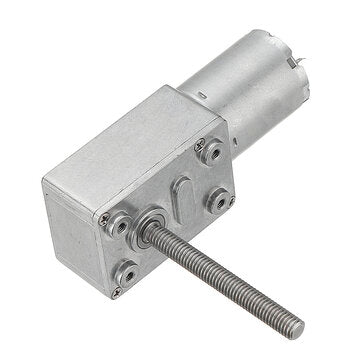

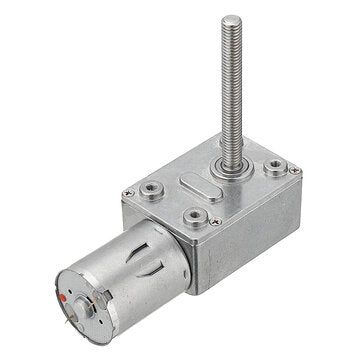

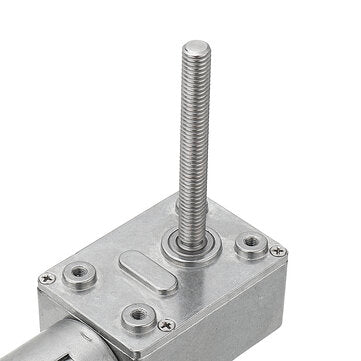

Machifit 2Pcs JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18RPM And 23RPM Self-locking Reduction Gea
Machifit 2Pcs JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18RPM And 23RPM Self-locking Reduction Gea
Regular price
$689.00 USD
Regular price
$1,148.33 USD
Sale price
$689.00 USD
Unit price
per
Couldn't load pickup availability
Descriptions:
Features: - Worm gear motor with self-locking, ie in the absence of electricity in the motor, the output shaft is not to move, that is self-locking. - Gear output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the g`eneral direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion. ? Note: - When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor. - The rod of rotation of the motor`s life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items. - Manufactured heavy eccentric load of radiation, harmful life of the motor. - Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect. - Do not run the motor in the surrounding temperature and moisture. ? Package Included:
More Details: ?
Machifit 2Pcs JGY370 50mm-M6 Screw Worm Gear Motor DC 12V 18RPM And 23RPM Self-locking Reduction Gear Motor
| Brand | Machifit |
| Material | Metal |
| Voltage | DC 12V |
| Rotate Speed (No-load Speed) | 18rpm, 23rpm |
| Size: | Outer Dia.: 31.5mm Axial Length: 33mm Screw Shaft: 50mm-M6 |
| Suitable For | Window, a door opener, miniature winch |
| Quantity |
1 Pc x 18rpm Motor 1 Pc x 23rpm Motor |
| Input Voltage(V) | 12 | 12 |
| Retarder Reduction Ratio | 1:340 | 1:260 |
| No Load?Current (mA) | a???60 | a???60 |
| No Load Speed(RPM) | 18 | 23 |
| Rated Torque(Kg.cm)? | 9.0 | 6.7 |
| Rated Speed(RPM) | 15 | 18 |
| Rated Current(A) | a???0.6 | a???0.6 |
| Max Torque(Kg.cm) | 18 | 13 |
| Stalling Current(A) | 1.7 | 1.7 |
Features: - Worm gear motor with self-locking, ie in the absence of electricity in the motor, the output shaft is not to move, that is self-locking. - Gear output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the g`eneral direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion. ? Note: - When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor. - The rod of rotation of the motor`s life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items. - Manufactured heavy eccentric load of radiation, harmful life of the motor. - Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect. - Do not run the motor in the surrounding temperature and moisture. ? Package Included:
| 1 Pc x | 18rpm Worm Gear Reducer |
| 1 Pc x | 23rpm Worm Gear Reducer |
More Details: ?
