Machifit DC 3V 6V 12V Micro Turbo Worm Gear Motor Reduction M... (VOLTAGE: 6V | ROTATE SPEED: 70RPM)

Machifit DC 3V 6V 12V Micro Turbo Worm Gear Motor Reduction M... (VOLTAGE: 6V | ROTATE SPEED: 70RPM)

$450.00 USD
$750.00 USD $450.00 USD
Sale Sold out

SELECTED OPTION:
VOLTAGE: 6V
ROTATE SPEED: 70RPM

for more options in this item

Description:

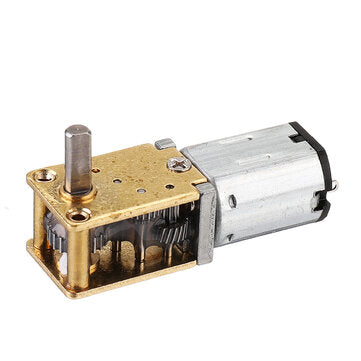

Machifit 1218GEN20 DC 3/6/12V Micro Turbo Worm Gear Motor 35/70RPM Reduction Motor


Specifications:

Product Name

Micro Turbo Worm Gear Motor

Model 1218GEN20
Voltage DC 3/6/12V
Color Gold+Silver
Quantity 1 Pc ? Micro Turbo Worm Gear Motor


VOLTAGE GEAR RATIO NO LOAD LOAD TORQUE STALL
SPEED CURRENT SPEED CURRENT TORQUE CURRENT TORQUE
3V 1:236 16RPM ??????30MA 13RPM ??????40MA 120g.cm ??????0.4A 2.6KG.CM
3V 30RPM ??????30MA 25RPM ??????40MA 160g.cm 2.2KG.CM
6V 35RPM ??????50MA 28RPM ??????85MA 220g.cm 1.5KG.CM
6V 70RPM ??????60MA 61RPM ??????105MA 320g.cm 2.2KG.CM
12V 60RPM ??????60MA 55RPM ??????105MA 380f.cm 3.5KG.CM
12V 120RPM ??????70MA 110RPM ??????105MA 450g.cm 5.5KG.CM


Features:

- Good heat exchange performance, fast heat dissipation.

- Large transmission speed ratio, large torque, and high overload capacity.

- With self-locking function, the output shaft can`t be rotated by certain force when switching off.

- DIY engine, industry application, house application, home automation, mini winch and other occasions.?
