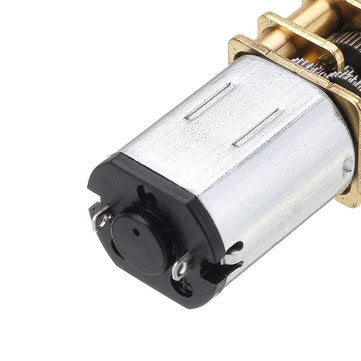

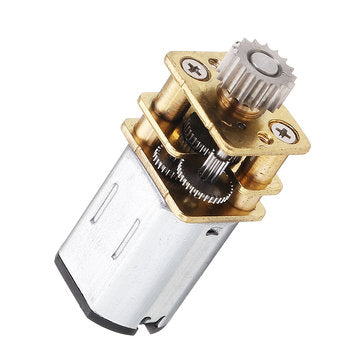

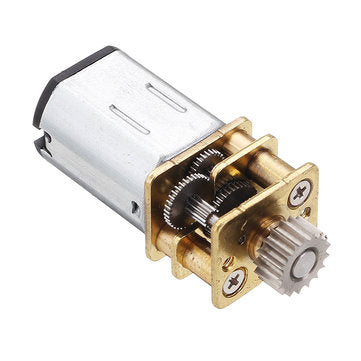

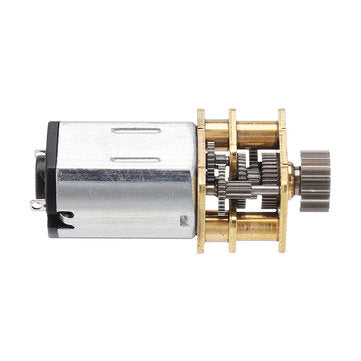

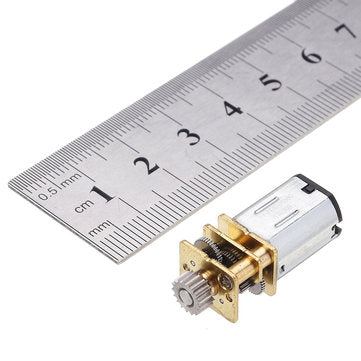

Machifit GM12YN20-298 DC12V 67RPM Cutting Gear Metal Gearbox Micro Gear Motor for 3D Drawing Pen
Machifit GM12YN20-298 DC12V 67RPM Cutting Gear Metal Gearbox Micro Gear Motor for 3D Drawing Pen
Regular price
$443.00 USD
Regular price
$738.33 USD
Sale price
$443.00 USD
Unit price
per
Couldn't load pickup availability
Description:
Machifit GM12YN20-298 DC12V 67RPM Cutting gear, metal gearbox, micro gear motor with line cutting teeth is for 3D drawing pen,3D graffiti.
Specification:
Features:
Technical requirements :
1. Gear box reduction ratio: 298:1.
2. Roughness without note is as Ra 1.6.
3. The gear box is flat and non-bending.
4. The gear box turns flexibly.
5. The output shaft axial clearance is 0.05-0.3mm.
6. All parts meet RoHs requirements.
7. The tolerance of unfilled form position is gb1184-80.
8. The tolerance difference is not indicated according to GB1184-F.
Package Included:
1 x ?Gear Motor?
More Details:
Machifit GM12YN20-298 DC12V 67RPM Cutting gear, metal gearbox, micro gear motor with line cutting teeth is for 3D drawing pen,3D graffiti.
Specification:
| Gear ratio | 1:298 |
| Voltage | 12v |
| No load speed | 60±10%rpm |
| No load current | a???50mA |
| Direction | CCW |
| Load?torque | 100g.cm |
| Load current | 70-100mA?max |
| Load speed | 55±10% r/min |
| Stall current | 330 mA max |
| Stall? torque | 2400 g.cm |
| Axial clearance | 0.05-0.03.mm |
| Shaft length | 10±0.2mm |
| Shaft diamete | 3±0.1mm |
| Flat bit size | 2.5±0.1mm |
| Weight | 30g |
Features:
Technical requirements :
1. Gear box reduction ratio: 298:1.
2. Roughness without note is as Ra 1.6.
3. The gear box is flat and non-bending.
4. The gear box turns flexibly.
5. The output shaft axial clearance is 0.05-0.3mm.
6. All parts meet RoHs requirements.
7. The tolerance of unfilled form position is gb1184-80.
8. The tolerance difference is not indicated according to GB1184-F.
Package Included:
1 x ?Gear Motor?
