Machifit JGY-370 DC 6V Double Shaft Motor Reduction Gear Turbine Worm Self-... (ROTATE SPEED: 10RPM)

SELECTED OPTION:
ROTATE SPEED: 10RPM

Descriptions:

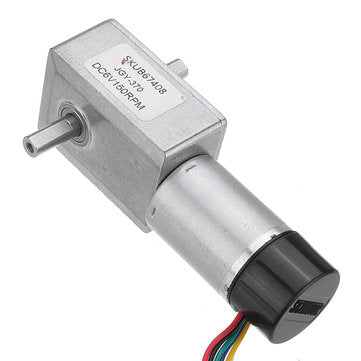

Machifit JGY-370 6V Double Shaft Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback

Specifications: Brand: Machifit
Type: Reduction Motor Material: Metal Voltage: DC 6V Weight: 172g Power: 3W Speed Regulation: Yes Rotation In Both Directions: Yes Size: Shaft Outer Dia.: 6mm Motor: 46 x 32mm(without shaft)
Line Length: 230mm

Reduction Ratio	? ?600?	? ?200?	? ?65?	? ?40?
No-load Current (MA)	a???100
No-load Speed (rpm)	10	30	90	150
Rated Torque (Kg.cm)	15.9	5.3	0.5	0.2
Rated Speed (rpm)	7.5	22	70	120
Rated Current (A)	a???0.6
Maximum Torque (Kg.cm)	30	10	1.6	0.9
Stop Current (A)	3.3

Wiring: Red: red motor + positive Black: black motor - negative Green: Green sensor ground wire - (5-12V) Blue: blue sensor power + (5-12V) Yellow: Signal A output point (11 pulses) White: Signal B output point (11 pulses)

Features: - D-type Double Shaft More fixed, superior thermal conductivity, high hardness and anti-friction; - Internal Gearbox All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere; - Double Shaft Covered Encoder The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating; - High quality motor with a service life of up to 1000 hours; - Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc. ? Package Included: 1 Pc x 6V Double Shaft Reduction Gear Motor
