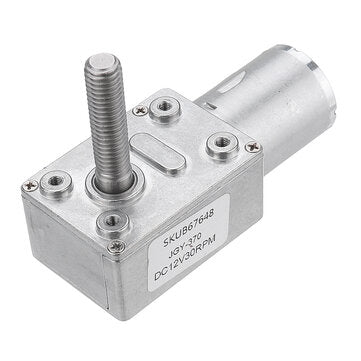

Machifit JGY370 DC 12V Worm Gear Motor 10/30/90/150RPM Turbine Self-lockin... (ROTATE SPEED: 150RPM)

SELECTED OPTION:
ROTATE SPEED: 150RPM

Descriptions: Machifit JGY370 DC?12V 10rpm / 30rpm / 90rpm / 150rpm?worm gear reducer reduction motor ? Specifications: Brand: Machifit Material: Metal Voltage: DC 12V Rotate Speed (No-load Speed) : 10rpm / 30rpm / 90rpm / 150rpm (optional) Size: Outer Dia.: 31.5mm Axial Length: 33mm Screw Shaft Dia.: 8mm? Output shank thread pitch: 1.25mm Suitable For: Window, a door opener, miniature winch

Input Voltage(V)	12
Retarder Reduction Ratio	1:600	1:200	1:65	1:40
No Load?Current (mA)	a???60
No Load Speed(RPM)	10	30	90	150
Rated Torque(Kg.cm)?	15.9	5.3	0.5	0.2
Rated Speed(RPM)	7.5	22	70	120
Rated Current(A)	a???0.6
Max Torque(Kg.cm)	30	10	1.6	0.9
Stalling Current(A)	1.7

Features: - Worm gear motor with self-locking, ie in the absence of electricity in the motor, the output shaft is not to move, that is self-locking. - Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the g`eneral direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion. ? Note: - When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor. - The axis of rotation of the motor`s life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items. - Manufactured heavy eccentric load of radiation, harmful life of the motor. - Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect. - Do not run the motor in the surrounding temperature and moisture. ? Package Included: 1 Pcs x DC?12V Worm Gear Reducer ? More Details: ?
