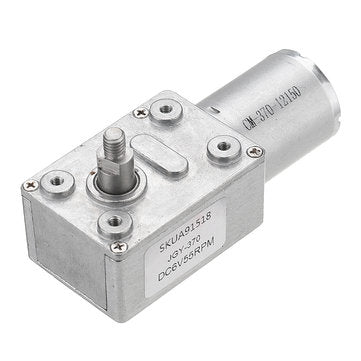

MACHIFIT JGY370 Worm Gear Motor DC 6V 55rpm Reduction Reversible Self-Locking Motor
MACHIFIT JGY370 Worm Gear Motor DC 6V 55rpm Reduction Reversible Self-Locking Motor
Regular price
$463.00 USD
Regular price
$771.67 USD
Sale price
$463.00 USD
Unit price
per
Couldn't load pickup availability
Description:
MACHIFIT JGY370 worm gear motor 6V 55rpm brush DC reduction motor with auto-Locking fits for lampblack machine
Specification:
Features:
- Can change shaft rotation direction while the wiring positive and negative be changed. - It is also have addition two characteristics:? First, With self-locking, the output shaft can not rotation when switch off, that is self-locking.? Second, Gearbox output shaft and motor shaft are come to be a rectangle. - Large torque, durable and long service life.
-?Specially used for range hood.?
? Package Included:
1 x?JGY370 Worm gear motor?
More Details:
MACHIFIT JGY370 worm gear motor 6V 55rpm brush DC reduction motor with auto-Locking fits for lampblack machine
Specification:
| Model | JGY370 |
| Voltage? | 6V |
| Output shaft | 8mm, M5 threaded rod, double flat |
| Deceleration ratio | 90 |
| No load current? | a???100MA |
| No Load Speed | 55rpm |
| Rated torque? | 0.7Kg.cm |
| Rated speed | 45rpm |
| Rated current? | a???0.6A |
| Maximum torque | 2Kg.cm |
| Stop current | 3.3A |
| Usage | Boat, Fan, Domestic Appliance, Car |
Features:
- Can change shaft rotation direction while the wiring positive and negative be changed. - It is also have addition two characteristics:? First, With self-locking, the output shaft can not rotation when switch off, that is self-locking.? Second, Gearbox output shaft and motor shaft are come to be a rectangle. - Large torque, durable and long service life.
-?Specially used for range hood.?
? Package Included:
1 x?JGY370 Worm gear motor?
