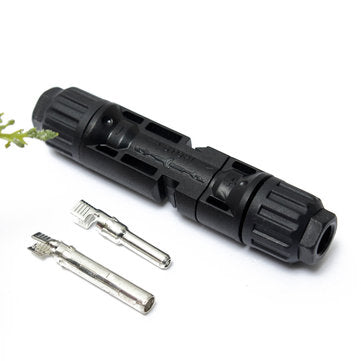

MC4 Male Female M/F Photovoltaic Wire Cable Connector Set For Solar Panel DIY
MC4 Male Female M/F Photovoltaic Wire Cable Connector Set For Solar Panel DIY
Regular price
$392.00 USD
Regular price
$653.33 USD
Sale price
$392.00 USD
Unit price
per
Couldn't load pickup availability
Description : ? MC4 Male Female M/F Photovoltaic Wire Cable Connector Set For Solar Panel DIY
Features :
? 1. Install easily and quickly 2. Waterproof and dustproof 3. Auto lock provides secure docking 4. Connecting : Pressing and tight hoop connecting 5. There are insulating member on both side of contact holes which can guide and prevent electric shocking ? Specification :
? 1.Rated Current : 25A(2.5/4mm2), 30A(4/6mm2) 2.Withstanding Voltage : 1000 V DC(TUV), 600V(UL) 3.Contact Resistance : a???0.3m?? 4.Protection Class : Class II 5.Temperature Range : -40 oC~+90oC 6.Protection Degree : IP2X, unmated;IP67, mated 7.Wire Size Range : 2.5/4/6mm2(14AWG, 12AWG, 10AWG) 8.Unmating Force : 200 Newton 9.Insulation Material : PC/PA 10.Contact Material : Copper, silver plated 11.Flame Class : UL94-V0 or UL94-5VA
? ?
Material?:?PC/PA+Copper,?silver plated Color?:?Black Size?:?L x W x H/ 8.5 x 2 x 2cm
? Package includes :
? 1 x Wire Cable Connector ? Details pictures : ?
?
Features :
? 1. Install easily and quickly 2. Waterproof and dustproof 3. Auto lock provides secure docking 4. Connecting : Pressing and tight hoop connecting 5. There are insulating member on both side of contact holes which can guide and prevent electric shocking ? Specification :
? 1.Rated Current : 25A(2.5/4mm2), 30A(4/6mm2) 2.Withstanding Voltage : 1000 V DC(TUV), 600V(UL) 3.Contact Resistance : a???0.3m?? 4.Protection Class : Class II 5.Temperature Range : -40 oC~+90oC 6.Protection Degree : IP2X, unmated;IP67, mated 7.Wire Size Range : 2.5/4/6mm2(14AWG, 12AWG, 10AWG) 8.Unmating Force : 200 Newton 9.Insulation Material : PC/PA 10.Contact Material : Copper, silver plated 11.Flame Class : UL94-V0 or UL94-5VA
? ?
Material?:?PC/PA+Copper,?silver plated Color?:?Black Size?:?L x W x H/ 8.5 x 2 x 2cm ? Package includes :
? 1 x Wire Cable Connector ? Details pictures : ?
?
