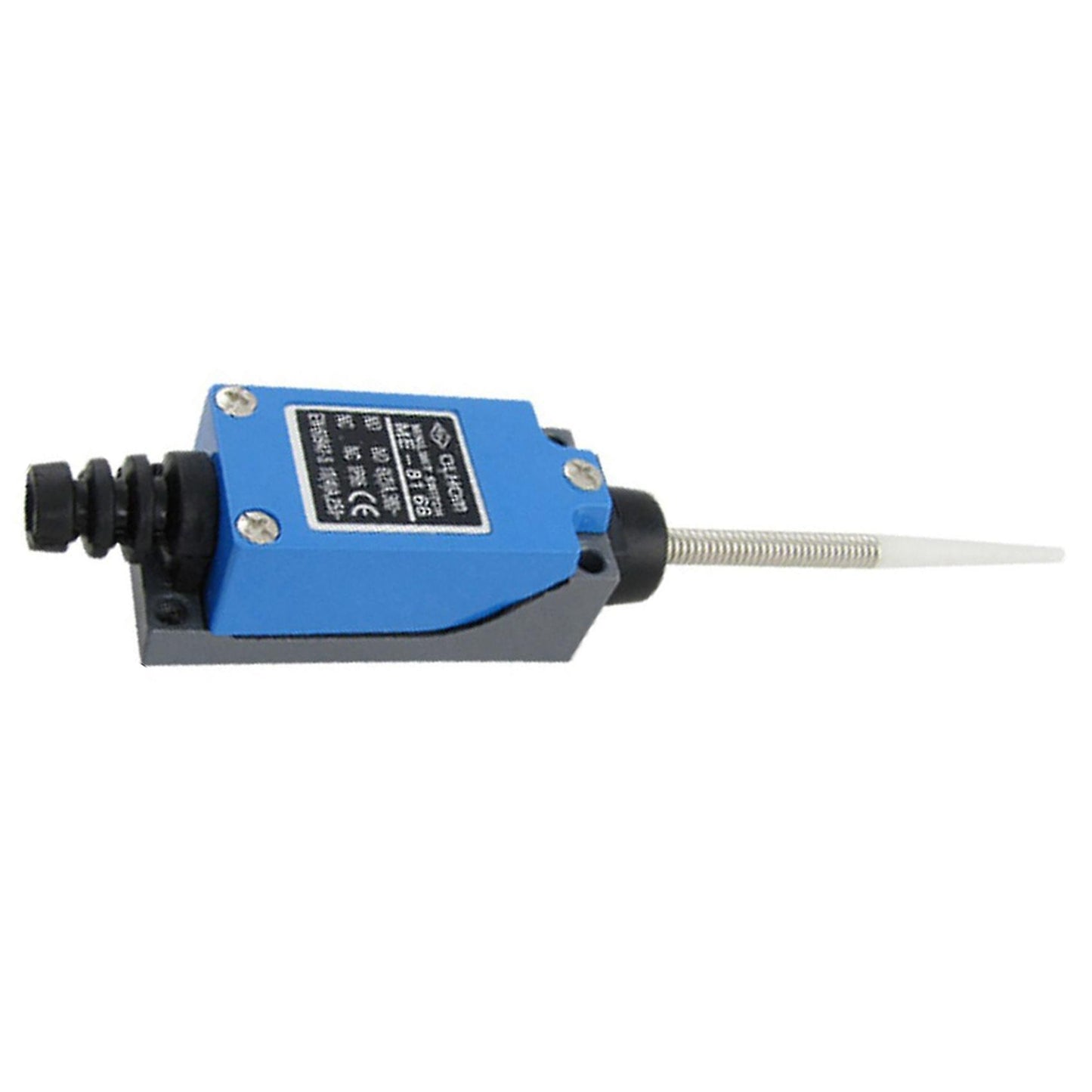

Me-8166 Spring Stick Rod Enclosed Limit Switch

Product Name : Actuator Limit Switch;Model No. : ME-8166;Actuator Action : Momentary;Actuator Type : Spring RodContact Configuration : 1 NC + 1 NO(SPDT);Power : AC 250V 5A;DC 115V 0.4AMounting Hole Diameter : 4.5mm / 0.18 inch ;Hole Center Point Distance : 56 x 21mm / 2.2 inch x 0.8 inch (L*W);Stick Length : ~81mm / 3.2 inchStick Platic Part Length : ~40mm / 1.6 inch ;Body Dimension : ~89 x 28 x 26mm / 3.5 inch x 1.1 inch x 1 inch (L*W*T);Main Color : Black, Gray, BlueMaterial : Plastic, Metal & Rubber;Weight : 65g;This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant.Can be used in safety circuits, control circuit and anxiliary circuit for terminal limit protection.Package: 2 x Limit SwitchOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
