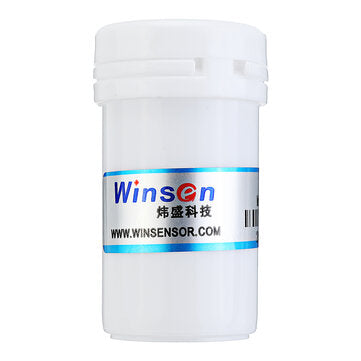

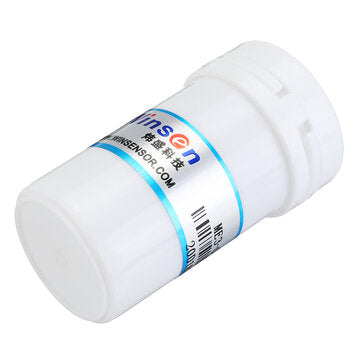

ME3-O3 Electrochemical Gas Ozone Sensor Module 0-20ppm Low Consumption High Sensitivity

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} ¯??
Overview:
ME3-O3 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Features:
* Low consumption * High precision * High sensitivity * Wide linear range * Good anti-interference ability * Excellent repeatability and stability
Specifications:

Item	Parameter
Detection?gas	O3
Measurement?Range	0~20ppm
Max?detecting?concentration	100ppm
Sensitivity	(0.60±0.15)??A/ppm
Resolution?ratio	0.02ppm
Response?time?(T90)
