Description:

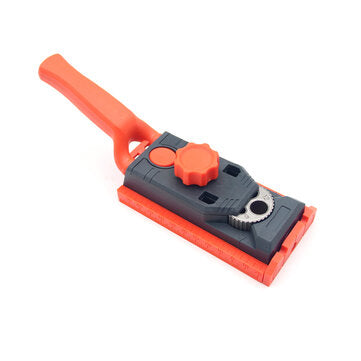

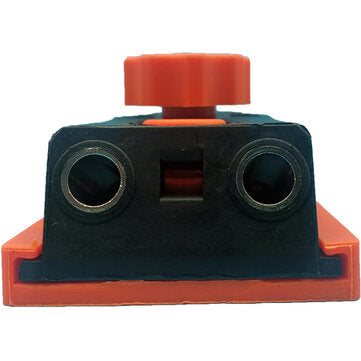

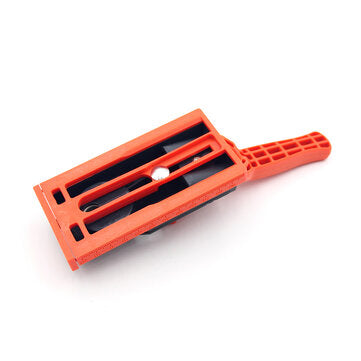

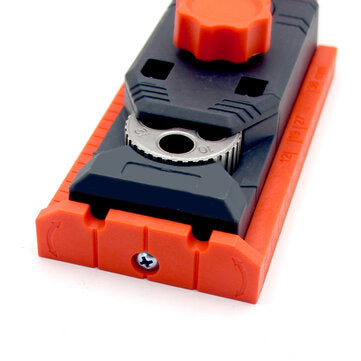

Multi-purpose Round Wood Tenon Locator Drilling Hole Positioner Woodworking Tool
Specifications:
| Product Name | Drilling Hole Positioner?
|
| Model | F87604 |
| Material | Plastic, Metal |
| Color | As the picture shows |
| Fit for Wood Board Thickness | 12-38mm (0.47-1.49) |
| Oblique Hole Diameter | 9.5mm (0.37) |
| Straight Hole Diameter | 6/8/10/12mm (0.23/0.31/0.39/0.47) |
| Quantity | 1 Pc ? Drilling Hole Positioner? |
Features:
- Multi-purpose drilling positioner, for drilling dowel holes and pocket holes.

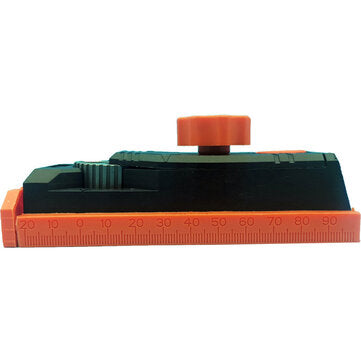

- High accurate scale, easy to adjusting drilling height and hole depth.

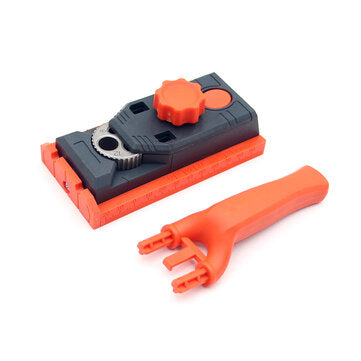

- New designed removable handle, support using as pocket hole jig when handle is removed.

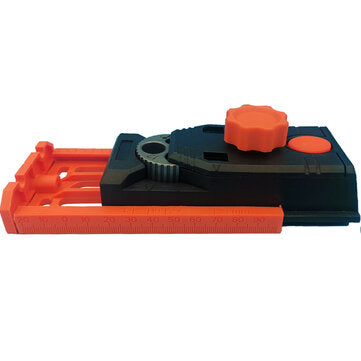

- Suitable for wooden board from 12mm up to 38mm thick by sliding the base.

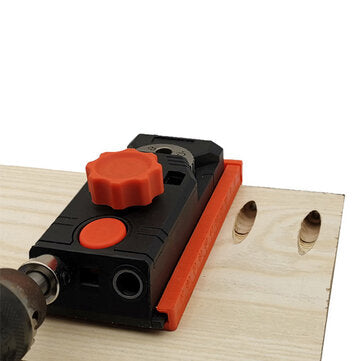

How to drill a pocket hole:
1: Adjust the drill height according woood thickness.
2: Fixing the drill guide on wood by clamp.
3: Put step drill bit into the hole.
4: Turn on the power drill, set to a certain speed of 500-1500rpm.
5: Drill slowly before half of the step bit drill into wood for higher precision.
Package Included:
1 Pc x | Drilling Hole Positioner |
More Details:
