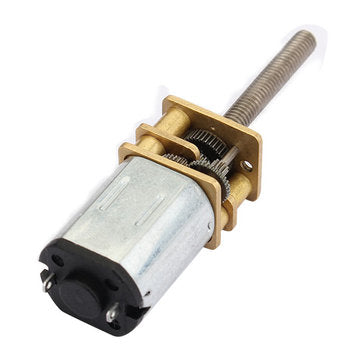

N20 DC 6V 55RPM Gear Motor M3 20mm Threaded Shaft Reduction Gear Motor

Description:
N20 DC 6V 55RPM Gear Motor M3 20mm Threaded Shaft Reduction Gear Motor

Specification:
Voltage: DC6.0V No-load speed: 55RPM Shaft diameter: 3mm Axial length: 20mm

1. Standard Operating Conditions

Item ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?	Specification
Rated Voltage	DC 6.0V
Gear Ratio	1/298
Rotation	CW?
Motor Position	All position in horizontal
Temperature	0 - 30 Degree Celsius
Humidity ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?	30% - 95%

2. Performance of ?Motor

Item	Specification
No-load Speed	16000 +/- 10%rpm
No-load Current	35mA (Max)
Stall Current	600mA (Max)
Stall Torque ? ? ? ? ? ? ? ? ?	10g.cm

3. Performance of Gear Motor

Item	Specification
Outer Speed?	55 +/-?10%rpm
No-load Current	50mA (Max)
Stall Current	600mA (Max)
Stall Torque	3.0kg.cm
Rated Torque	750g.cm
Rated Current	150mA (Max)
Rated Speed ? ? ? ?	40?+/-?10%rpm
Noise ? ? ?	50dB

4. Dimension

Item ? ? ? ? ? ? ? ??	Specification
The Outside Shafft Length ? ? ? ? ? ? ?	20mm
Shaft End Play	0.05 - 0.50mm
Screw Size?	M1.6 x 0.35
Diameter of Shaft?	M3 threaded shaft
Outline Mounting Dimension	Refer to the Outline Drawing

5. Product ?Drawing




6. Curve?Drawing




Package Included:
1 x Motor
