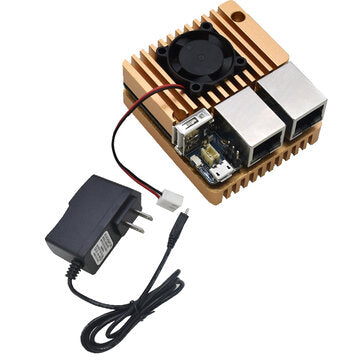

Nanopi R2S Mini Router +Aluminum Alloy Metal Protective Cover with ... (PLUG: EUPLUG | COLOR: BLUE)

Features:

• NanoPi R2S is an open source platform with two Gbps Ethernet ports, designed for IoT applications.
• NanoPi R2S uses RK3328 CPU. It has two Gbps Ethernet ports and 1G DDR4 RAM. We have applied system for OpenWrt to NanoPi R2S. You can easily make it a router by simply applying simple configurations.
• Powerful Performance RK3328. Quad-core/1GB DDR4 RAM. Supports hardware acceleration for AES enabled encryption and decryption. 1GB DDR4 RAM sufficient for running various applications.
• Designed with platform for Docker which is a light software utility that can package an application and its dependencies in a virtual container that can run for any Linux server. Most applications for ARM64 can be run seamlessly via the platform for Docker.
• The NanoPi R2S has two Gbps Ethernet ports: one directly extended form the SoC and the other converted from a USB3.0.
• For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps; the USB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
• Internal 10/100/1000M Ethernet Port x 1USB3.0 converted 10/100/1000M Ethernet Port x 1
• TX: 941 Mbps; RX: 941 Mbps

Specifications:

- CPU:
* Model: RK3328
* Number of Cores: Quad-Core Cortex-A53
* Frequency: For 4 x Cortex-A53 Up to 1.4GHz

- Memory: RAM: 1GB DDR4

- Storage: Micro SD Slot: Micro SD x 1 for external storage up to 128GB

- Connectivity:
* Ethernet: Gbps Ethernet x 1
* USB 3.0 to Gbps Ethernet x 1

- Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector

- USB:
* USB 2.0 Host x 1: USB Type A
* Micro USB x 1: Power input(5V/2A) and Slave

- Pin-header: Serial Debug Port x 1: 2.54mm pitch 3pin-header (3.3V TTL)

- LED:
* SYS LED(Red) x 1
* WAN LED(Green) x 1
* LAN LED(Green) x 1
- Key: User Key x1
- Working Temperature:? 0?????to 80????
- Power Supply: DC 5V/2A

- OS Support:
* For FriendlyWrt 19.07.1 (64-bit)
* For Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11)

Dimensions:
- PCB: 6 Layer
- PC Size: 55.6 x 52mm

Package included:

1 x NanoPi R2S
1 x NanoPi R2S Case

1 x 5V 3A Power

Details pictures:?
