ZHIQIAN

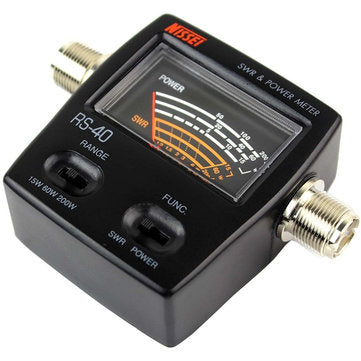

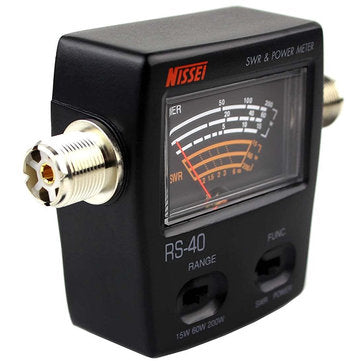

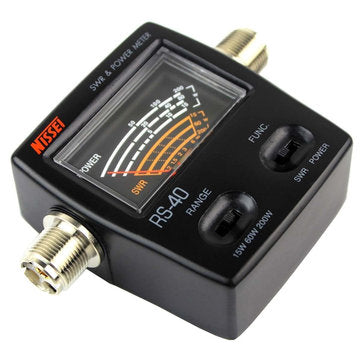

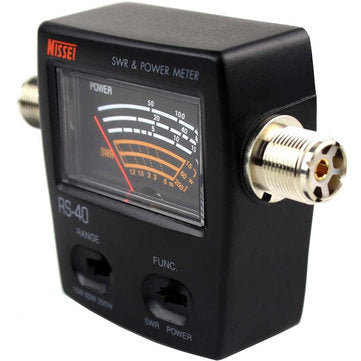

NISSEI RS-40 Power SWR Meter Measurable Range 200W for Two Way Radio with Adapter Connector
NISSEI RS-40 Power SWR Meter Measurable Range 200W for Two Way Radio with Adapter Connector
Regular price
$1,362.00 USD
Regular price
$2,270.00 USD
Sale price
$1,362.00 USD
Unit price
per
Couldn't load pickup availability
Description:
NISSEI RS-40 SWR/POWER meters are of the highest quality. Measurement accuracy is between +/- 5 to 10% depending on model. Insertion loss is typically less than 0.3 dB or lower.? This SWR/Watt meter is a campact size for measuring Forward Power, and VSWR. RS-40 SWR & Power Meter can read out directly without any calibration.Low insertion loss structure allows it to be connected permanently.
Specification:
Model: RS-40 Frequency Range: 140-150MHz,430-450MHz Measurable Power Range: 0-200W Power Scale: 15W,60W,200W Maximum Power: 200W Accuracy-10W Range: (AVG) +/- 10% Accuracy -100/1000W Range: (AVG) +/- 5% Min.Power(Fwd) Measured:1W Input/Output Connector: MJ-MJ (BNC,N Optional) Insertion Loss: 0.3dB or Lower Testing Function: Forward,SWR Input/Output Impedance: 50 OHM Dimension(W/H/D)mm: 70 x 78 x 30 Weight(Net): 180g
Package Included:
? 1 x Brand New NISSEI RS-40 SWR & Power Meter
Detail Pictures:
NISSEI RS-40 SWR/POWER meters are of the highest quality. Measurement accuracy is between +/- 5 to 10% depending on model. Insertion loss is typically less than 0.3 dB or lower.? This SWR/Watt meter is a campact size for measuring Forward Power, and VSWR. RS-40 SWR & Power Meter can read out directly without any calibration.Low insertion loss structure allows it to be connected permanently.
Specification:
Model: RS-40 Frequency Range: 140-150MHz,430-450MHz Measurable Power Range: 0-200W Power Scale: 15W,60W,200W Maximum Power: 200W Accuracy-10W Range: (AVG) +/- 10% Accuracy -100/1000W Range: (AVG) +/- 5% Min.Power(Fwd) Measured:1W Input/Output Connector: MJ-MJ (BNC,N Optional) Insertion Loss: 0.3dB or Lower Testing Function: Forward,SWR Input/Output Impedance: 50 OHM Dimension(W/H/D)mm: 70 x 78 x 30 Weight(Net): 180g
Package Included:
? 1 x Brand New NISSEI RS-40 SWR & Power Meter
Detail Pictures:
